Magnetic Sweeper

Rs.2,775.00

Sale Sold out

Shipping calculated at checkout.

Product Details

At a Glance

A magnetic sweeper (also called a magnetic broom) is a push, tow or forklift-mounted tool that collects ferrous scrap like iron chips, nails, nuts, screws, tacks, barbed wire and staples from floors and yards in a single pass. PML's sweeper range spans forklift-mounted, heavy-duty tow-behind and walk-behind models for workshops, construction sites and parking areas.

Magnetic sweepers, also called magnetic brooms, exist because ferrous scrap is invisible until it does damage. One pass collects iron chips, shavings, nails, nuts, screws, tacks, barbed wire and staples before they reach a tyre, a shoe or a child's hand.

PML sweepers are the quick, convenient and safe way to clean floors, driveways, construction areas, walkways, factory aisles, loading docks, parking lots, playgrounds, party lawns, cricket grounds and more. This page covers the full range, six series, each built for a different way of working. For port-scale and large-yard operations, see our removing ferrous debris from ports & yards page.

MAGNETIC SWEEPERS
Specifications	RH 10	RH 11	SR 10	SR 11	SR 12	FS 10	FS 11	FS 12
Sweeping Width:	24 ''	14.2 ''	13 ''	13 ''	18 ''	12 ''	24 ''	36 ''
Wheel Diameter:	6 ''	6 ''	4 ''	4 ''	7 ''	6 ''	6 ''	6 ''
Ground Clearance:	2 ''	2 ''	1 ''	1 ''	1 ''	2 ''	2 ''	2 ''
Length of Total Assembly:	30.4 ''	15.8 ''	31.5 ''	31.5 ''	49 ''	45 ''	45 ''	45 ''
Width of Magnet:	5.08 ''	5.08 ''	2 ''	2 ''	3 ''	5 ''	5 ''	5 ''
Height of Magnet:	1.8 ''	1.8 ''	2 ''	2 ''	4 ''	2 ''	2 ''	2 ''
Magnetic Area:	24 ''	14.2 ''	12 ''	12 ''	16 ''	9.5 ''	21 ''	32 ''
Plate Housing Thickness:	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Length of Rods:	48 ''	48 ''	28 ''	20 ''	43.5 ''	42 ''	42 ''	42 ''
Lifting Capacity:	5 kg	3 kg	280 gm	250 gm	1100 gm	1750 gm	1 kg	1 kg
Magnet Strength:	1000 gs	1000 gs	1200 gs	1200 gs	1000 gs	700 gs	900 gs	900 gs
Cleaning Operation:	Self	Self	Self	Self	Self	Manual	Manual	Manual

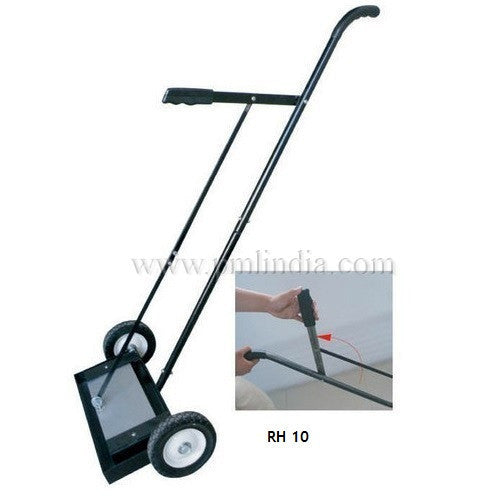

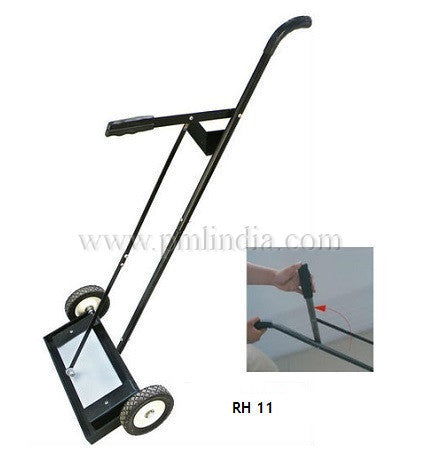

RH Series: Heavy Duty with Quick Release

Strong permanent ceramic magnets sweep scrap without fuss, rubber wheels make movement easy, and one pull of the rod releases all trapped material, no gloves or shop towels needed. Choose RH for demanding sites and heavier debris.

RH Assembly and Model Videos

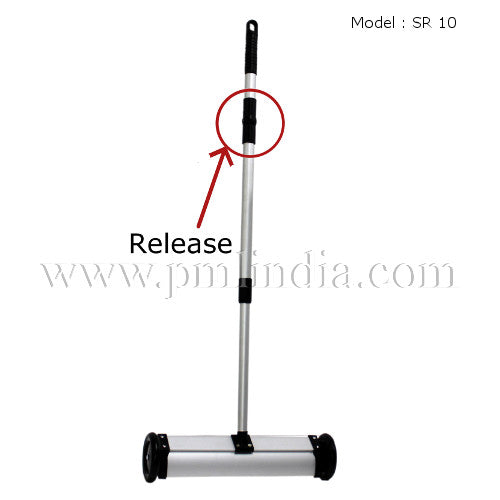

SR Series: Regular Strength with Quick Release

700 g Lifting Capacity
Regular-strength pickup sized for everyday cleanup.
13" Sweeping Width
Compact width that gets between machines and along walkways.
Stores Small
The 40" handle retracts to 27"; the SR 11's handle disassembles completely for even more compact storage.
Quick-Release Slide
Slide the handle to drop the collected scrap, clean hands, every time.

SR Assembly and Model Videos

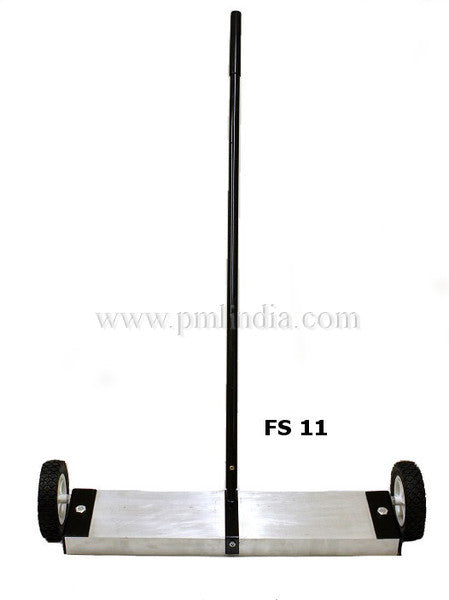

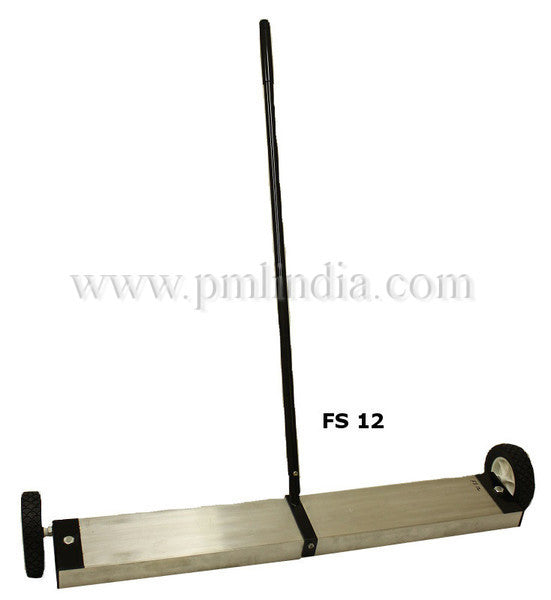

FS Series: Regular Magnetic Floor Sweeper

Incredibly strong and well built: powerful ceramic magnets in a durable aluminium housing, cleared of debris with work gloves or heavy shop towels.

The 24" model picks up 3.4 kg of 8-gauge small nails from a 2" height (approximately 680 pieces)
The 36" model converts to a hang-type sweeper
All models are 1.75" high by 5" deep (excluding wheels)
Light aluminium housing, durable rubber wheels
Easy to operate over most terrain, even in water

Model FS 12 Video

SM Series: Rectangular Mini Sweeper

Picks up nails, screws and other small ferrous items; clear the face with work gloves or a heavy shop towel. Choose a 14.5" or 27" sweeping width. The light aluminium housing makes it excellent for home, shop or office.

Model SM 10 Video

SW Series: Hang-Type Sweeper

Hang an SW sweeper from your forklift or vehicle bumper and sweep contaminated areas as you drive, greatly reducing costly flat tyres and injuries from nails, scrap iron and staples. Two eyebolts on each magnet make suspension simple; clear the face with a glove or shop towel.

The 24" model picks up 5 kg of 8-gauge small nails from 51 mm height (approximately 1000 pieces)
All models are 1.75" high by 5" deep
Available in widths from 15" to 96"

Model SW 11 Video

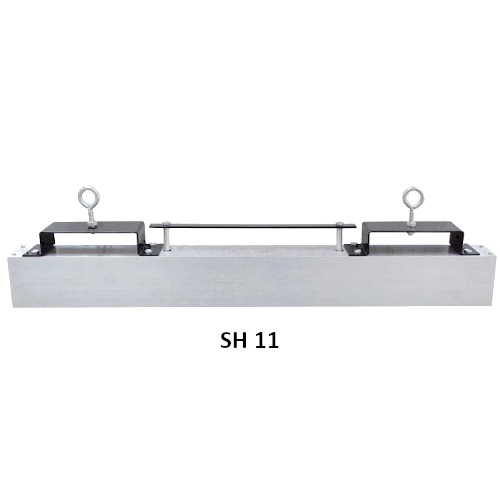

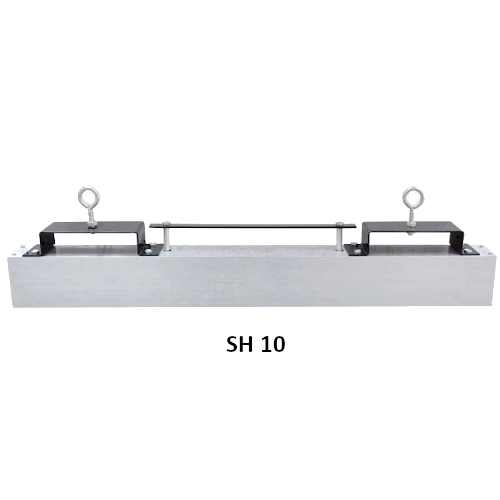

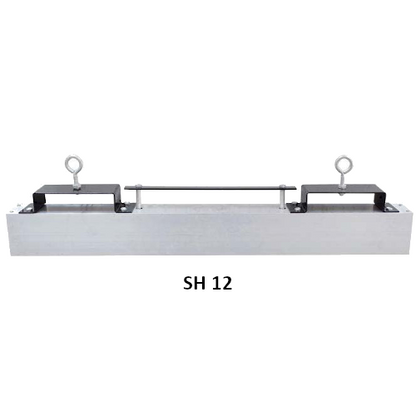

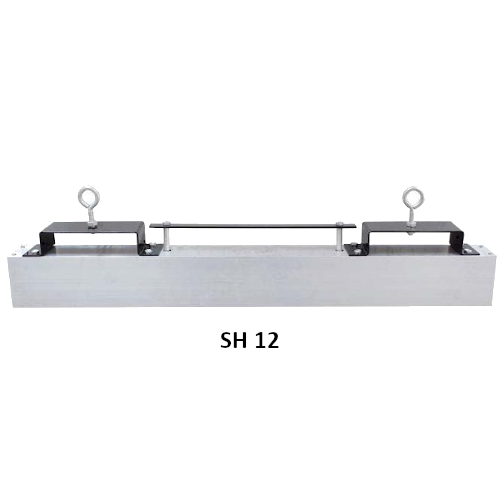

SH Series: Hang-Type with Release, for Forklifts

All the drive-and-sweep convenience of a hang-type sweeper, plus a release handle: pull it and every collected object drops where you want it, no gloves or towels needed.

SR No.	SPECIFICATION	SH-10	SH-11	SH-12
1	Sweeping Width	36”	48”	60”
2	Width Of Magnet	3”	3”	3”
3	Fixing Bracket center distance	24”	29”	30.5”
4	Height Of Magnet	4”	4”	4”
5	Magnetic Area	36”	48”	60”
6	Plate Housing Thickness	2mm	2mm	2mm
7	Lifting Capacity	80 kgs	115 kg	135 kgs
8	Magnet Strength	900gs	900gs	900gs
9	Cleaning Operation	Manual	Manual	Manual

Frequently Asked Questions

Which series should I choose?

Walk-behind cleanup: FS (wipe-clean) or SR (quick release). Heavy debris: RH. Sweeping from a forklift or vehicle: SW (wipe-clean) or SH (with release). Small spaces, home or office: SM. The specification table at the top compares every model.

Do magnetic sweepers need power?

No. Every series uses permanent ceramic magnets, nothing to charge, power or maintain.

What's the difference between quick-release and regular models?

Quick-release models (SR, RH, SH) drop collected scrap with one pull or slide, so you never touch it. Regular models (FS, SM, SW) are cleared by wiping the magnet face with gloves or a shop towel.

Can they be used outside the factory?

Yes, driveways, parking lots, playgrounds, lawns and sports grounds all benefit; the FS series even works through water.

Is there a mini sweeper for home or office use?

Yes, the SM series is a rectangular mini sweeper in 14.5" or 27" widths, sized for home, shop or office use.

What's the strongest sweeper in the range?

The SH-12 hang-type model, rated up to 135kg lifting capacity, built for forklift-mounted heavy debris collection.

Case Study: A Custom Sweeper Built for Port-Scale Operations

Adani Ports and Special Economic Zone Limited

Custom Magnetic Tow Sweeper, heavy-duty, trailer-mounted, port road-surface cleaning

Problem: Adani Ports needed an efficient way to remove ferrous metal debris from operational port road surfaces. Manual collection was slow and ineffective for small ferrous particles, and the site needed a robust, towable magnetic sweeper capable of covering large areas efficiently while improving cleanliness and safety.
Solution: PML engineered a heavy-duty, custom-built Magnetic Tow Sweeper for port infrastructure conditions. Two magnetic configurations, NdFeB and Ferrite, were developed and evaluated, in a trailer-mounted design with an easy unloading system for efficient large-area collection with minimal manual effort.
Result: Both configurations proved effective at ferrous metal collection under real operating conditions, improving debris recovery and enabling reliable, mechanized sweeping across the port's road network, reducing manual effort while supporting safer, cleaner site operations. PML has since supplied this custom Tow Sweeper design to multiple Adani port facilities, including Adani Vizhinjam Port.

Why Buy From PML

65+ years of magnetic expertise, Permanent Magnets Ltd has designed and manufactured magnetic products for 65+ years, and our consumer range is built to the same engineering standards we supply to global industrial leaders.
Made and tested in-house, magnets, assemblies and finished products are manufactured and quality-checked at our own facilities, so every unit performs to its stated specification.
Honest specifications, the ratings you read on this page are the ratings you get. If your application needs a different size or strength, our engineers will tell you exactly what works, and what won't.
Support from real engineers, from product selection to after-sales, your questions are answered by the team that builds the product.

Need help choosing, or a custom specification? Chat with our team on WhatsApp and we will help you find the right fit.
