Product Details
At a Glance
A magnetic sheet floater (also called a sheet separator) lifts the top sheet off a stack of steel sheets using a magnet that attracts it upward without gripping or damaging sharp edges, so it lifts cleanly without dragging the sheets underneath.

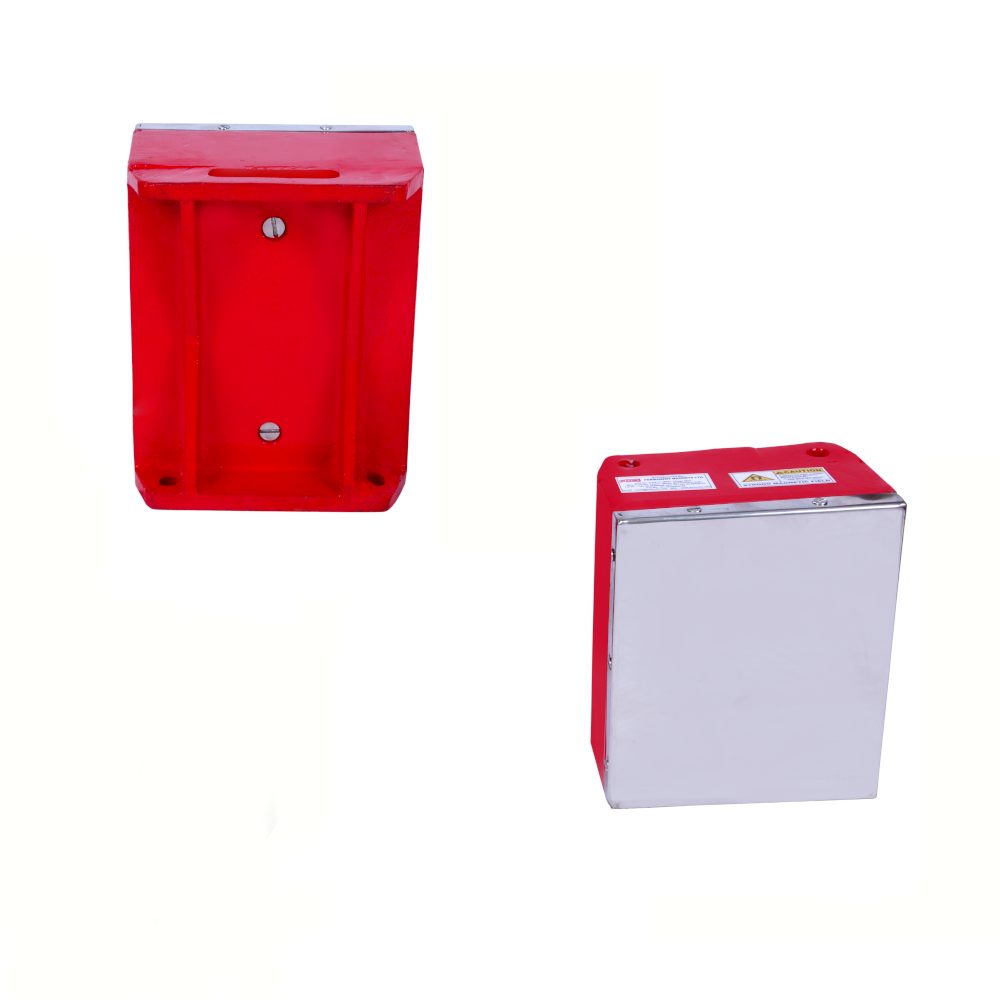

Anyone who has fought to peel a single sheet off a steel stack knows the problem: no grip, sharp edges, sliding sheets. The PML Magnetic Sheet Floater solves it elegantly — place it near the stack and its magnet attracts the top sheet upward, making it appear to float slightly above the pile. That separation is exactly the grip a worker needs to take one sheet, cleanly and safely.
No more sliding sheets around to find the perfect hold, no more dirty hands — sheet separation becomes a non-event.
Models & Specifications
| Sheet Floater Models | ||||||
|---|---|---|---|---|---|---|
| Model | Length (mm) | Width (mm) | Magnet Height (mm) | Assembly Height (mm) | Pull Force (Kg) | Sheet Thickness (mm) |
| 975/2 | 180 | 150 | 100 | 130 | 6.5 | 0.3-0.6 |
| 975/3 | 220 | 180 | 120 | 155 | 11 | 0.6-1.2 |
Frequently Asked Questions
How does it separate just the top sheet?
The magnet's field magnetises the sheets with like polarity, so the top sheet is pushed up and away from the one below — it "floats", separated and easy to grip.
Which model do I need?
Match the pull force and sheet-thickness columns in the table above to your material. If your sheets fall between models, ask us — we'll recommend honestly.
Does it need power or maintenance?
No — it is a permanent-magnet device. Position it, and it works.
What sheet thickness range does it cover?
0.3–0.6mm on the 975/2 model and 0.6–1.2mm on the 975/3 — see the table above.
What's the pull force of each model?
6.5kg on the 975/2 and 11kg on the 975/3.
Why Buy From PML
- 65+ years of magnetic expertise — Permanent Magnets Ltd has designed and manufactured magnetic products for 65+ years, and our consumer range is built to the same engineering standards we supply to global industrial leaders.
- Made and tested in-house — magnets, assemblies and finished products are manufactured and quality-checked at our own facilities, so every unit performs to its stated specification.
- Honest specifications — the ratings you read on this page are the ratings you get. If your application needs a different size or strength, our engineers will tell you exactly what works — and what won't.
- Support from real engineers — from product selection to after-sales, your questions are answered by the team that builds the product.
Need help choosing, or a custom specification? Chat with our team on WhatsApp and we will help you find the right fit.
