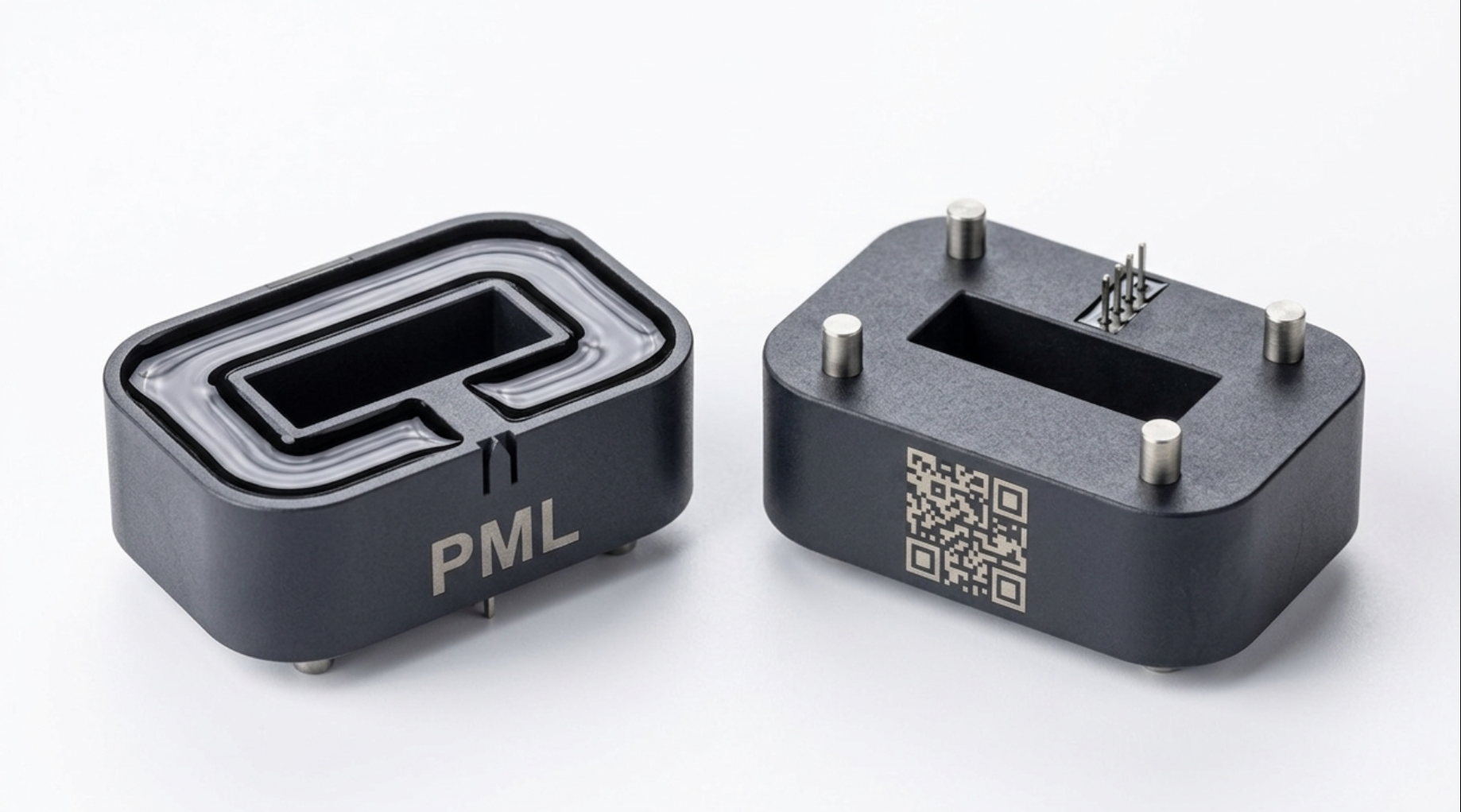

HNRC Series PCB Mount Current Sensor

HNRC Series PCB Mount Current Sensor

Rs.146.00
Rs.146.00
Sale Sold out
View bulk pricing →
Shipping calculated at checkout.

Specifications

Rated Current
—
Output Voltage
—
Accuracy
—
Download Datasheet (PDF)
View full details

Product Details

At a Glance

The HNRC Series is the rectangular-footprint version of PML's cost-effective current sensor line, verified to less than 1.5% full-scale accuracy for scalable, price-sensitive production. It measures up to 1,000A, in 5V or 3.3V variants.

Cost-optimised with <1.5% FS error across 300A–1000A in both 5V and 3.3V versions, ideal for scalable, price-sensitive applications.

The HNRC Series is the rectangular-footprint version of our cost-effective line.

Key Specifications

  • Footprint: Rectangular
  • Current Range: 300A–1000A across 6 standard models
  • Feature: Cost Effective
  • Accuracy: <1.5% FS
  • Measurement: AC / DC / Pulsed DC

Select Your Model & Download Its Datasheet

Choose your model from the option above to add it to your enquiry. Every model's full datasheet is linked below.

Model Rated Current Output Voltage Accuracy Datasheet
HNRC-500 500A (min. 300A) 5V <1.5% FS Download PDF
HNRC-800 800A (min. 500A) 5V <1.5% FS Download PDF
HNRC-1000 1000A (min. 700A) 5V <1.5% FS Download PDF
HNRC-500L 500A (min. 300A) 3.3V <1.5% FS Download PDF
HNRC-800L 800A (min. 500A) 3.3V <1.5% FS Download PDF
HNRC-1000L 1000A (min. 700A) 3.3V <1.5% FS Download PDF

Why Buy From PML

  • 65+ years of magnetic and sensing expertise.
  • ISO-certified manufacturing with stringent quality control.
  • Global compliance — RoHS, REACH and UL94 V0 standards met as standard.

Need a custom specification? Talk to our engineering team.

Frequently Asked Questions

Which HNRC model should I choose?

Match the model's current range to your application's maximum expected current, then choose the output voltage (5V or 3.3V) to suit your MCU/logic platform. The cards above list every HNRC variant with its exact range and voltage — if you're between two models, our engineers will help you pick.

What does "<1.5% FS accuracy" mean in practice?

It means the sensor's output tracks the true current to within under 1.5% FS of full-scale reading across the rated range — verified on every unit we ship, not just a datasheet claim.

Can I get a custom current range or voltage?

Yes — the models above are our standard catalogue, but PML also designs custom PCB-mount sensors to your exact current range, voltage and footprint requirements.

Where do I download the full datasheet?

Click "Download Datasheet" on any model card above for its complete electrical, mechanical and thermal specifications.

Comparing sensor families? See range, accuracy and footprint across all six PCB current sensor series on our PCB-mount current sensor hub page.

Bulk pricing

Per-unit price in ₹ (INR), ex-works PML Thane, for HNRC-500, HNRC-800, HNRC-1000. For volume orders, contact our sales team to order at the rates below. List dated 1 April 2026, valid till June 2026.

Order quantity (units)HNRC-500HNRC-800HNRC-1000
1–199₹146₹148₹151
200–499₹112₹114₹117
500–4,999₹93₹95₹97
5,000–24,999₹85₹87₹88
25,000–99,999₹80₹81₹83
100,000–499,999₹77₹78₹80
500,000 and above Contact us for pricing
  1. Prices depend on global semiconductor and base-material price fluctuations and are subject to change.
  2. Prices are ex-works PML, Thane-401107, Maharashtra, India. Freight and taxes extra.
  3. All prices are in Indian Rupees (₹).
  4. Valid till June 2026.
