Every stray screw on a shop floor is a puncture, an injury or a product defect waiting to happen. The PML FS-Series Magnetic Sweeper — also called a magnetic broom — collects iron chips, shavings, nails, nuts, screws, tacks, barbed wire and staples in one pass, faster and more thoroughly than any manual sweep.
Use it to keep floors, driveways, construction sites, walkways, factory aisles, loading docks and parking areas genuinely clean — quickly, safely and without bending or picking.
| MAGNETIC SWEEPERS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | Sweeping Width: | Wheel Diameter: | Ground Clearance: | Length of Total Assembly: | Width of Magnet: | Height of Magnet: | Magnetic Area: | Plate Housing Thickness: | Length of Rods: | Lifting Capacity: | Magnet Strength: | Cleaning Operation: |

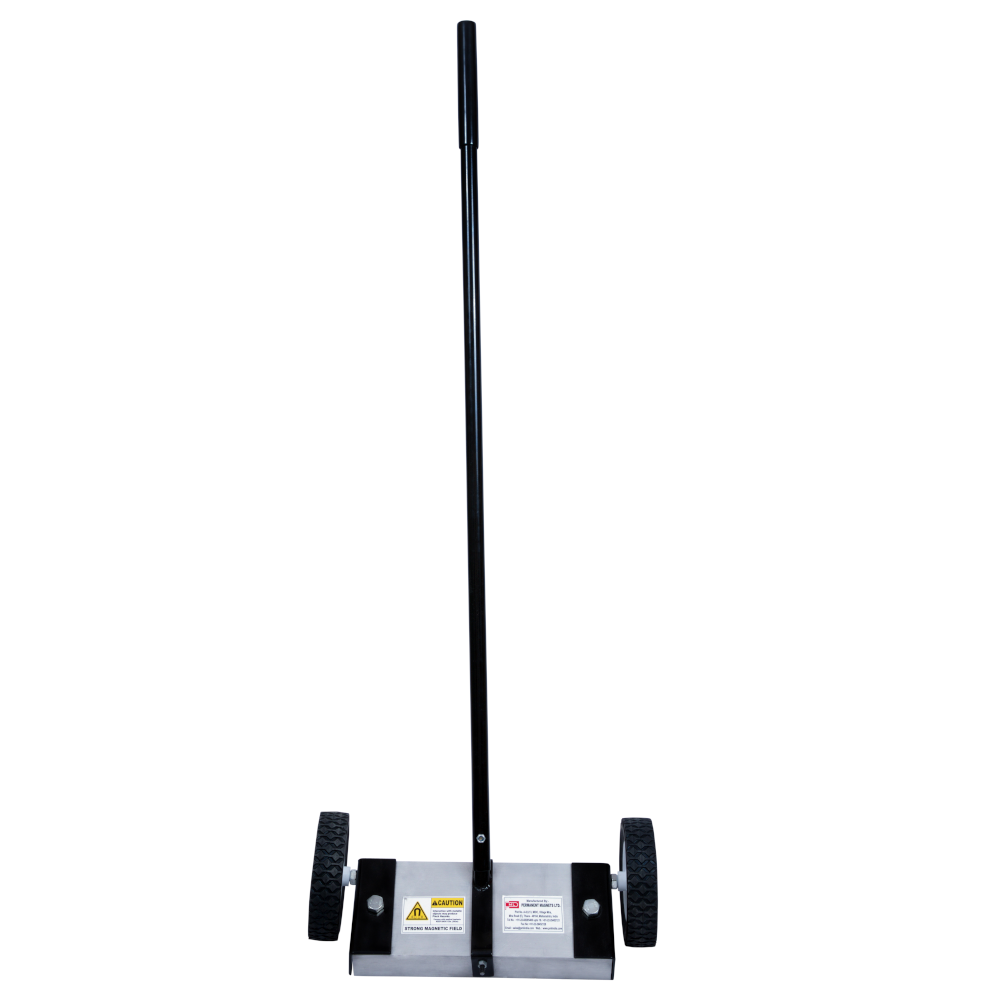

| Model FS10 | 12 '' | 6 '' | 2 '' | 45 '' | 5 '' | 2 '' | 9.5 '' | 2 mm | 42 '' | 2 kgs | 700 gs | Manual |

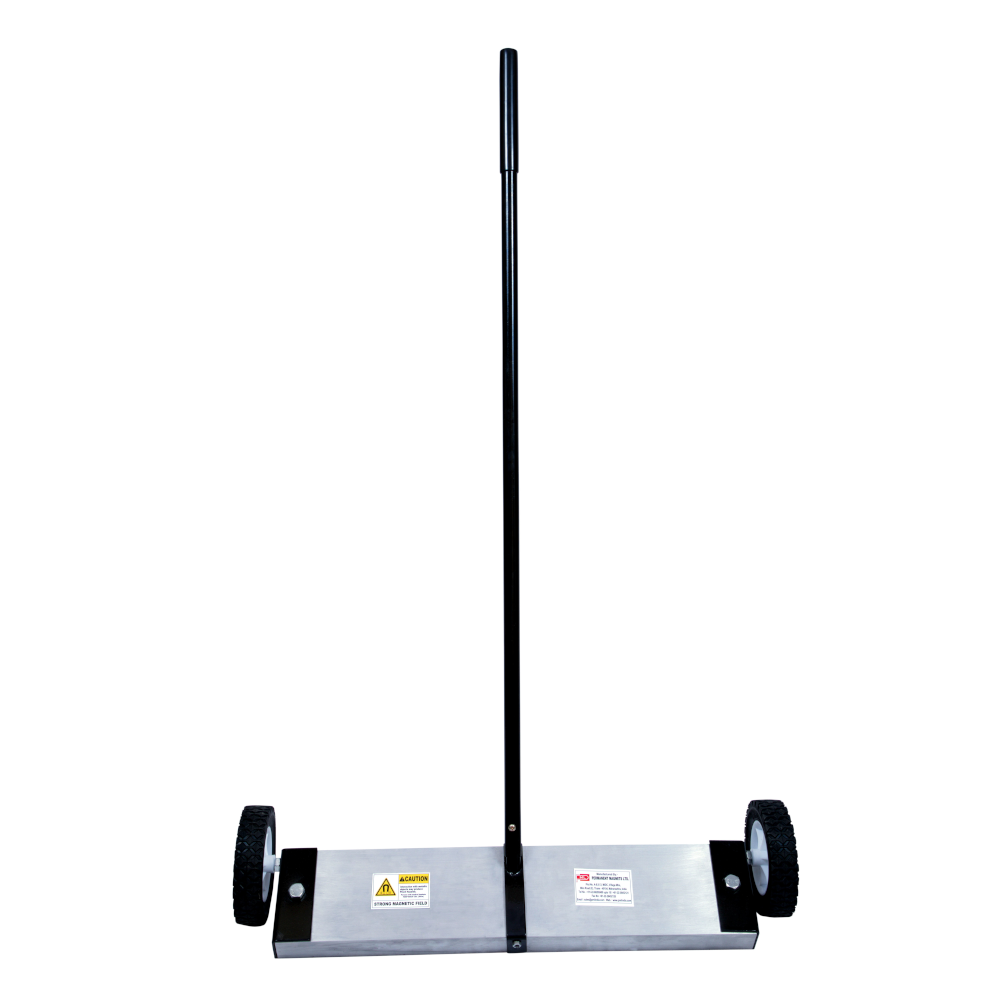

| Model FS11 | 24 '' | 6 '' | 2 '' | 45 '' | 5 '' | 2 '' | 21 '' | 2 mm | 42 '' | 3-4 kgs | 900 gs | Manual |
FS Series: The Regular Magnetic Floor Sweeper
FS models are incredibly strong and well built: powerful ceramic magnets encased in a durable aluminium housing, cleared of collected debris with work gloves or heavy shop towels.
- Proven Pickup Power
The 24" model picks up 3.4 kg of 8-gauge small nails from a 2" height — approximately 680 pieces in one pass.
- Converts for Forklift Use
The 36" model converts to a hang-type sweeper when you want to sweep while driving.
- Light, Durable Build
Aluminium housing with durable rubber wheels; all models are 1.75" high by 5" deep (excluding wheels).
- Goes Where the Mess Is
Easy to operate over most terrain — even through water.

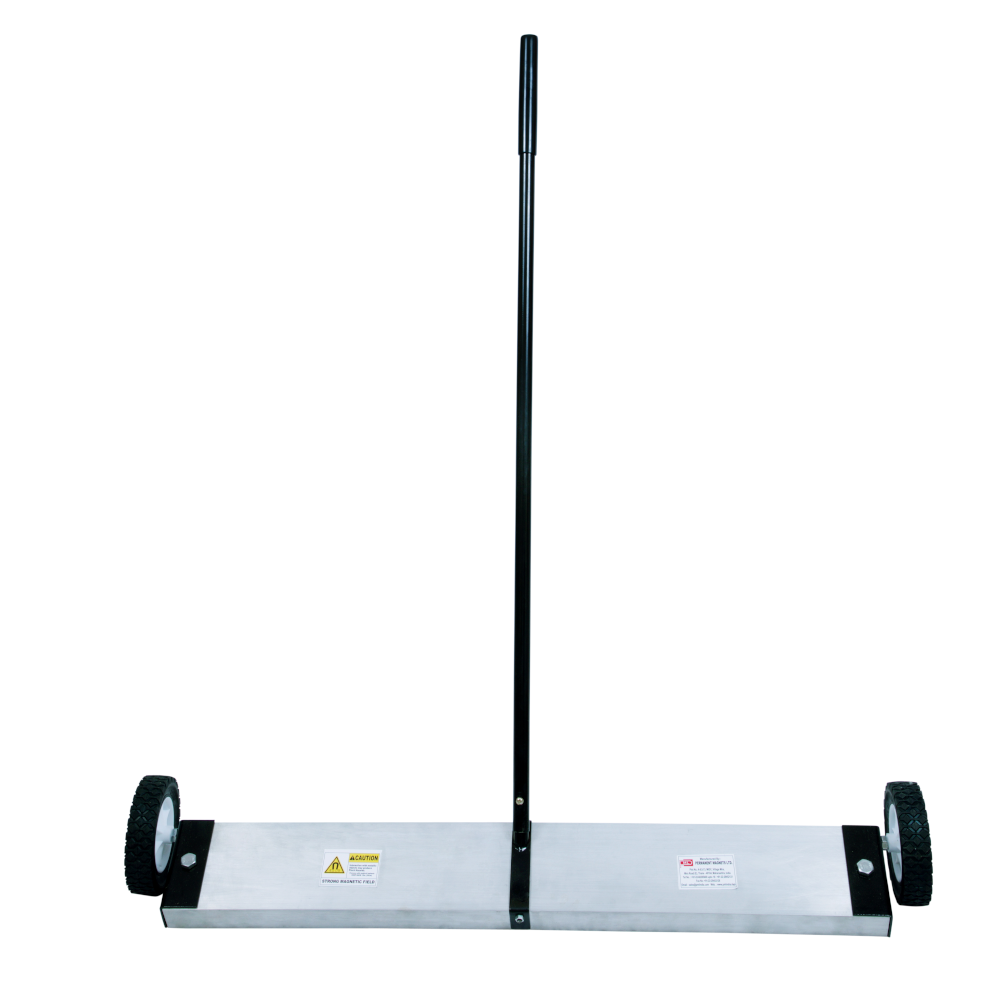

Model FS 12 in Action
Frequently Asked Questions
How much can it actually pick up?
As a benchmark, the 24" model lifts 3.4 kg of small nails (about 680 pieces) from a 2" height in a single pass. Real-world capacity depends on debris size and ground clearance.
Can I use it outdoors or in wet areas?
Yes — FS sweepers operate over most terrain, even in water, and the aluminium housing doesn't rust.
How do I clean the magnet face?
Wipe collected debris off with work gloves or a heavy shop towel. If you prefer one-pull release cleaning, look at our SR or RH series with quick release.
