Product Details
One nail in a forklift tyre costs more than a magnetic sweeper. The PML SH-Series Magnetic Sweeper — also called a magnetic broom — clears dangerous ferrous scrap in a single pass: iron chips, shavings, nails, nuts, screws, tacks, barbed wire and staples, including the debris that eyes and ordinary brooms miss.
It is the quick, convenient and safe way to clean floors, driveways, construction areas, walkways, factory aisles, loading docks and parking lots — without bending, picking, or handling sharp metal.
| SR No. | SPECIFICATION | SH-10 | SH-11 | SH-12 |
|---|---|---|---|---|
| 1 | Sweeping Width | 36” | 48” | 60” |
| 2 | Width Of Magnet | 3” | 3” | 3” |
| 3 | Fixing Bracket center distance | 24” | 29” | 30.5” |
| 4 | Height Of Magnet | 4” | 4” | 4” |
| 5 | Magnetic Area | 36” | 48” | 60” |
| 6 | Plate Housing Thickness | 2mm | 2mm | 2mm |
| 7 | Lifting Capacity | 5 kgs | 7 kgs | 10 kgs |
| 8 | Magnet Strength | 900gs | 900gs | 900gs |
| 9 | Cleaning Operation | Manual | Manual | Manual |

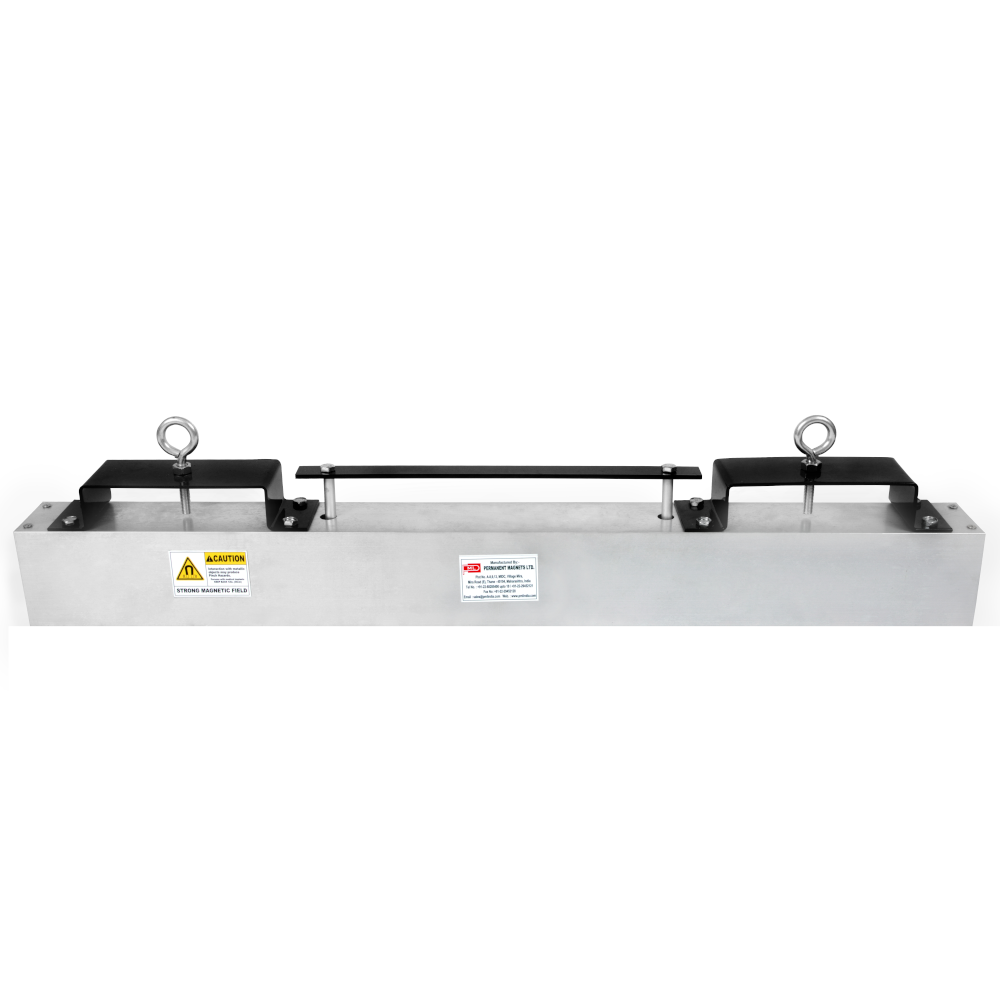

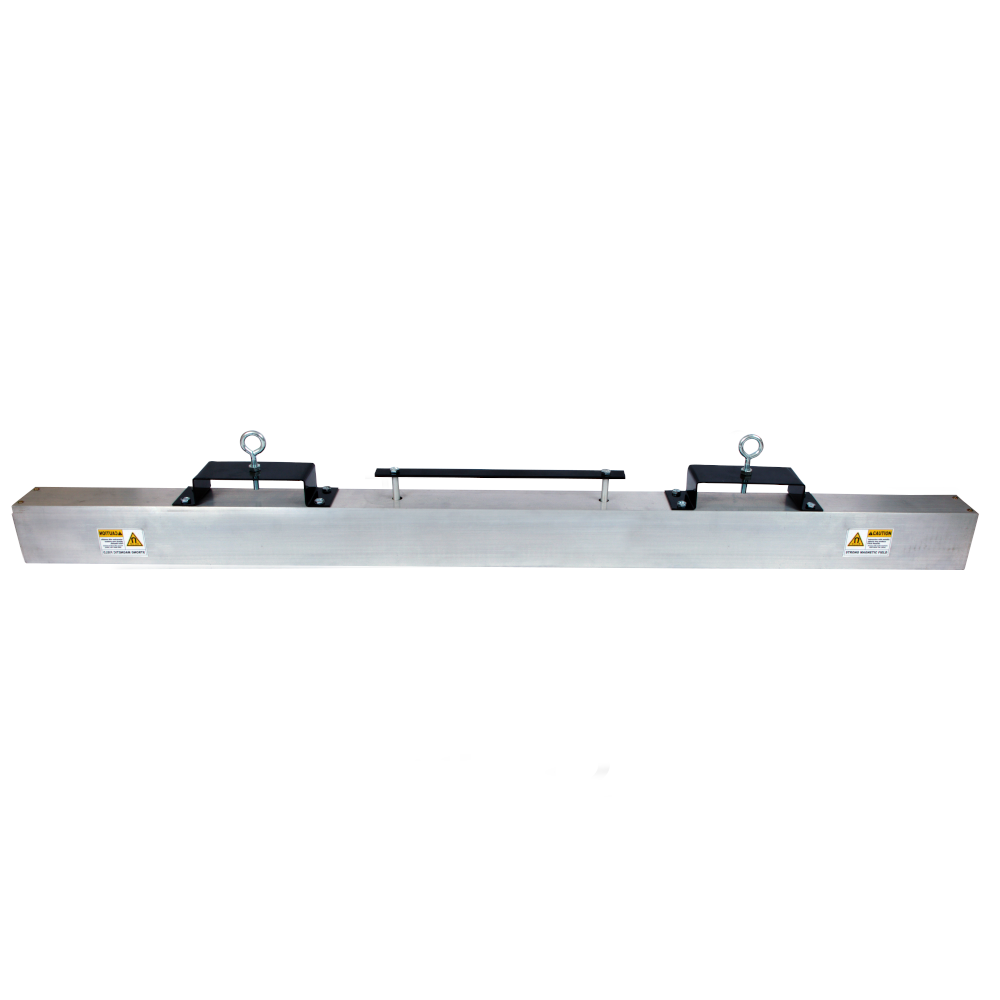

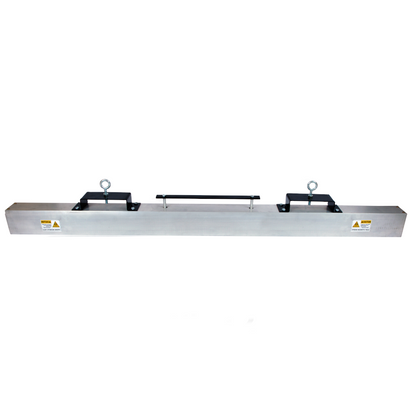

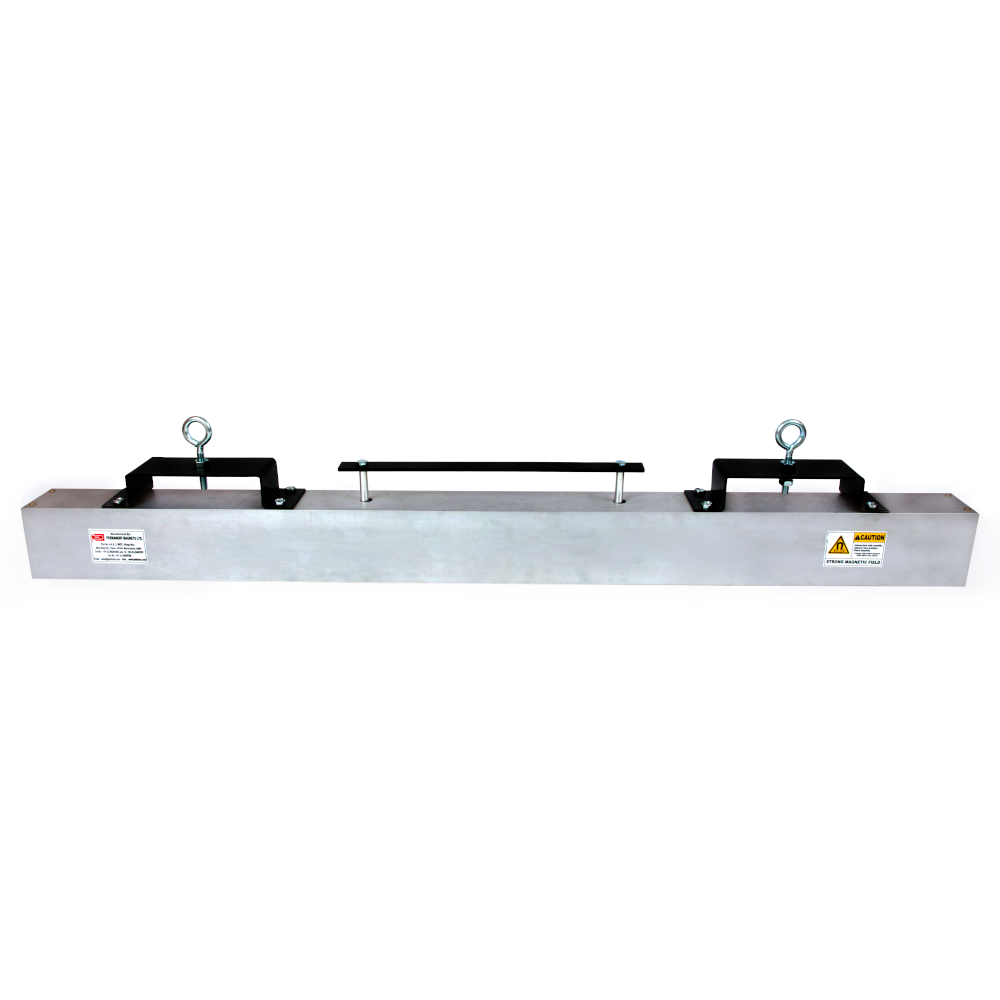

SH Series: Hang-Type Sweeper with Release, Built for Forklifts

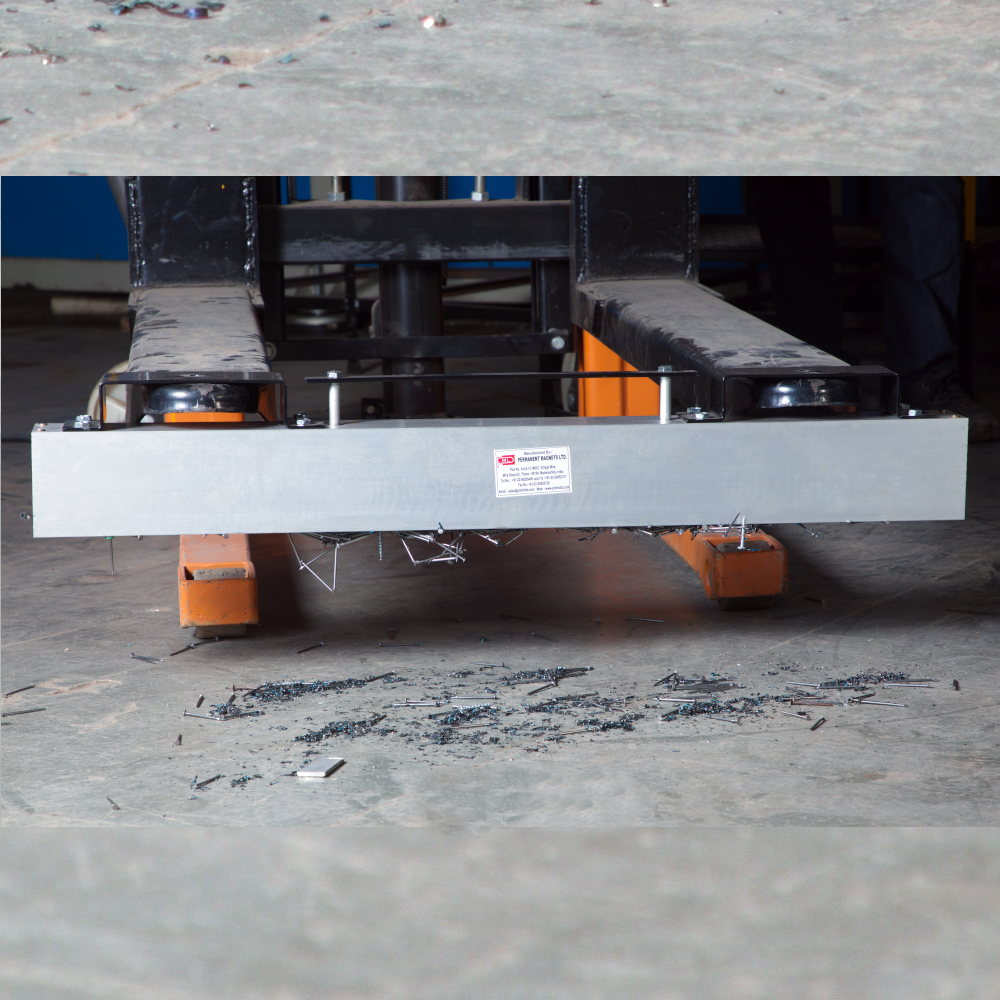

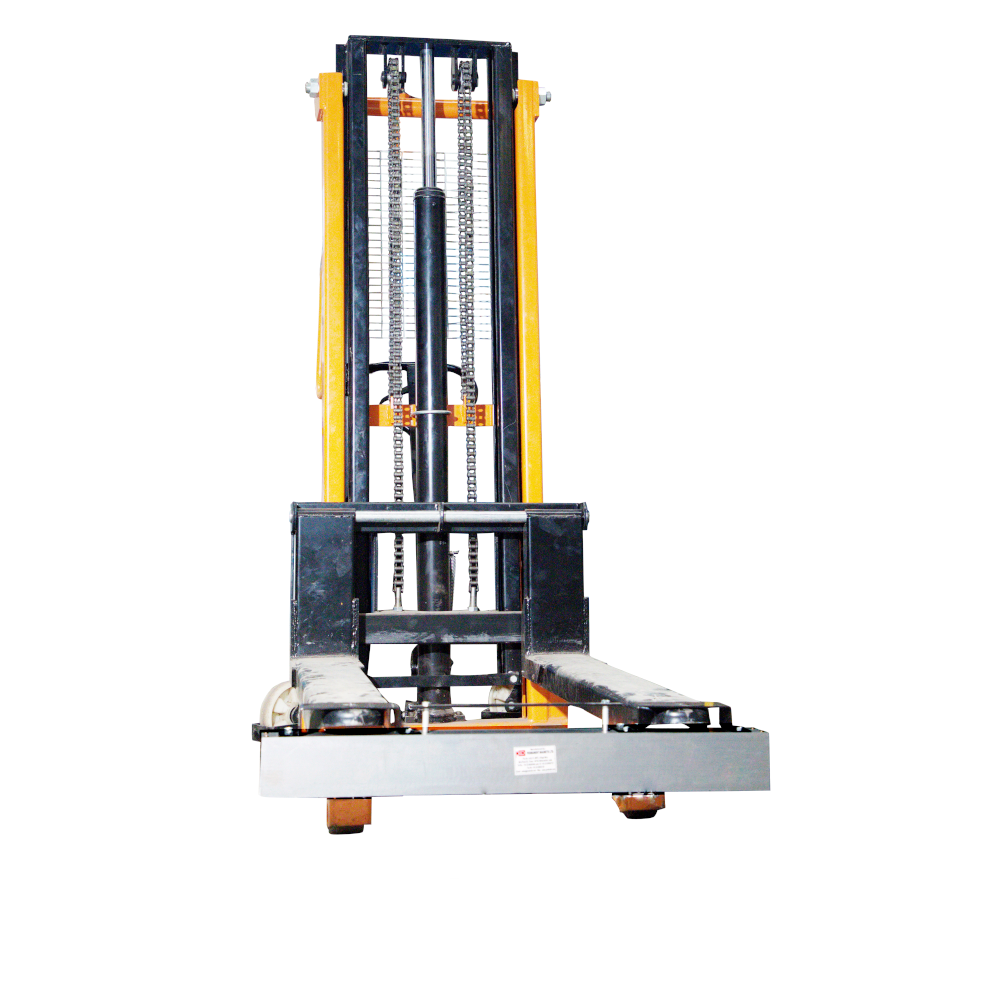

SH sweepers hang from your forklift, so sweeping happens while the truck does its normal rounds. Strong permanent ceramic magnets in an aluminium housing collect scrap metal as you drive; when the sweep is done, one pull of the release handle drops everything exactly where you want it.
- Sweep While You Drive
Hangs from the forklift — scrap collection becomes part of every trip, not a separate job.
- One-Pull Clean Release
Pull the handle on the aluminium housing and every collected object drops to the desired area. No work gloves, no shop towels, no handling sharp scrap.
- Permanent Ceramic Magnets
Strong, permanent magnetic pickup with nothing to power and nothing to wear out.
Frequently Asked Questions
How do I empty the sweeper?
Just pull the release handle — all collected metal drops off in one action. Unlike basic sweepers, there is no need to wipe the magnet face with gloves or towels.
Does it need electricity?
No. The pickup comes from permanent ceramic magnets — nothing to charge, power or maintain.
Which SH model do I need?
The specification table above compares the SH-10, SH-11 and SH-12 by sweeping width and dimensions. Match the width to your aisles or yard lanes — or ask our team and we will recommend the right fit.
Why Buy From PML
- 65+ years of magnetic expertise — Permanent Magnets Ltd has designed and manufactured magnetic products for 65+ years, and our consumer range is built to the same engineering standards we supply to global industrial leaders.
- Made and tested in-house — magnets, assemblies and finished products are manufactured and quality-checked at our own facilities, so every unit performs to its stated specification.
- Honest specifications — the ratings you read on this page are the ratings you get. If your application needs a different size or strength, our engineers will tell you exactly what works — and what won't.
- Support from real engineers — from product selection to after-sales, your questions are answered by the team that builds the product.
Need help choosing, or a custom specification? Enquire now and our engineering team will guide you to the right solution.
