Product Details

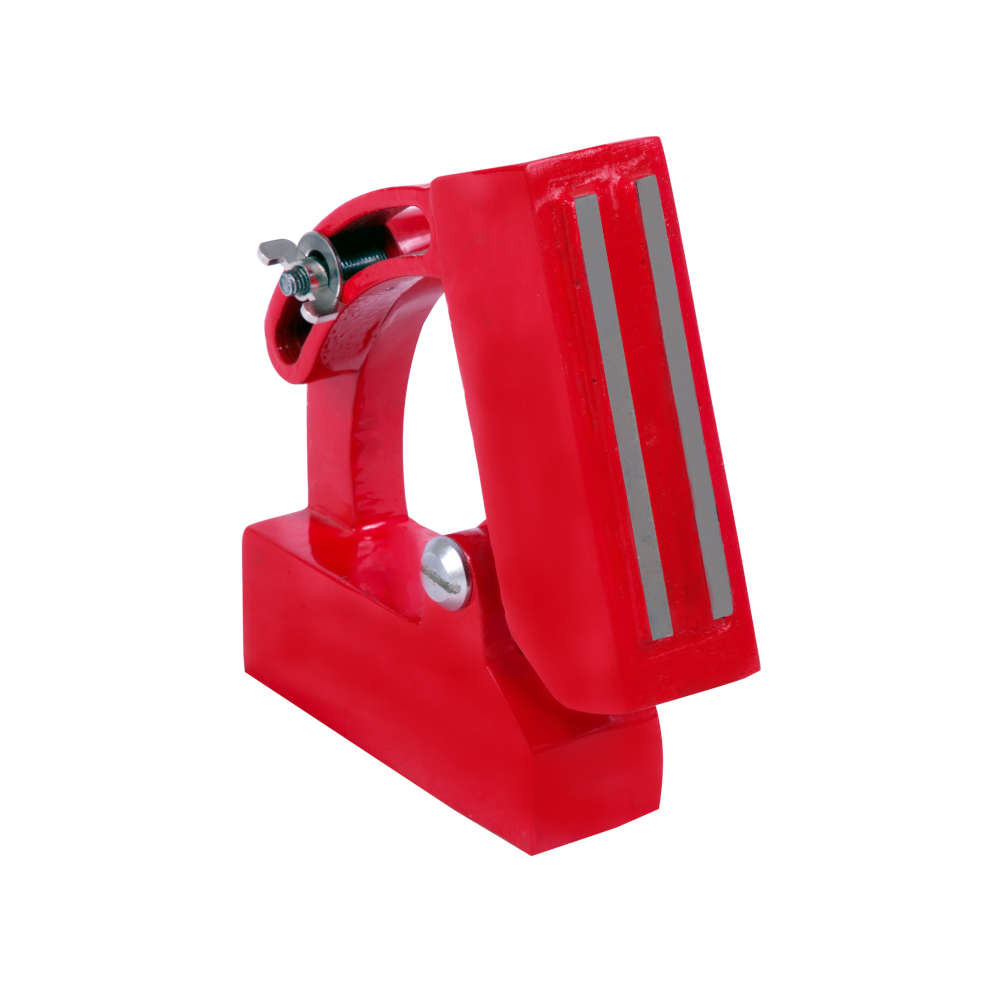

Precise angles are the difference between fabrication and rework. The PML Multi-Angle Protractor Magnetic Welding Clamp is the most flexible clamp in our welding range: instead of fixed angles, it carries a marked protractor, so you dial in the exact joint angle, lock it, and weld with both hands free.
- Any Angle, Marked and Locked

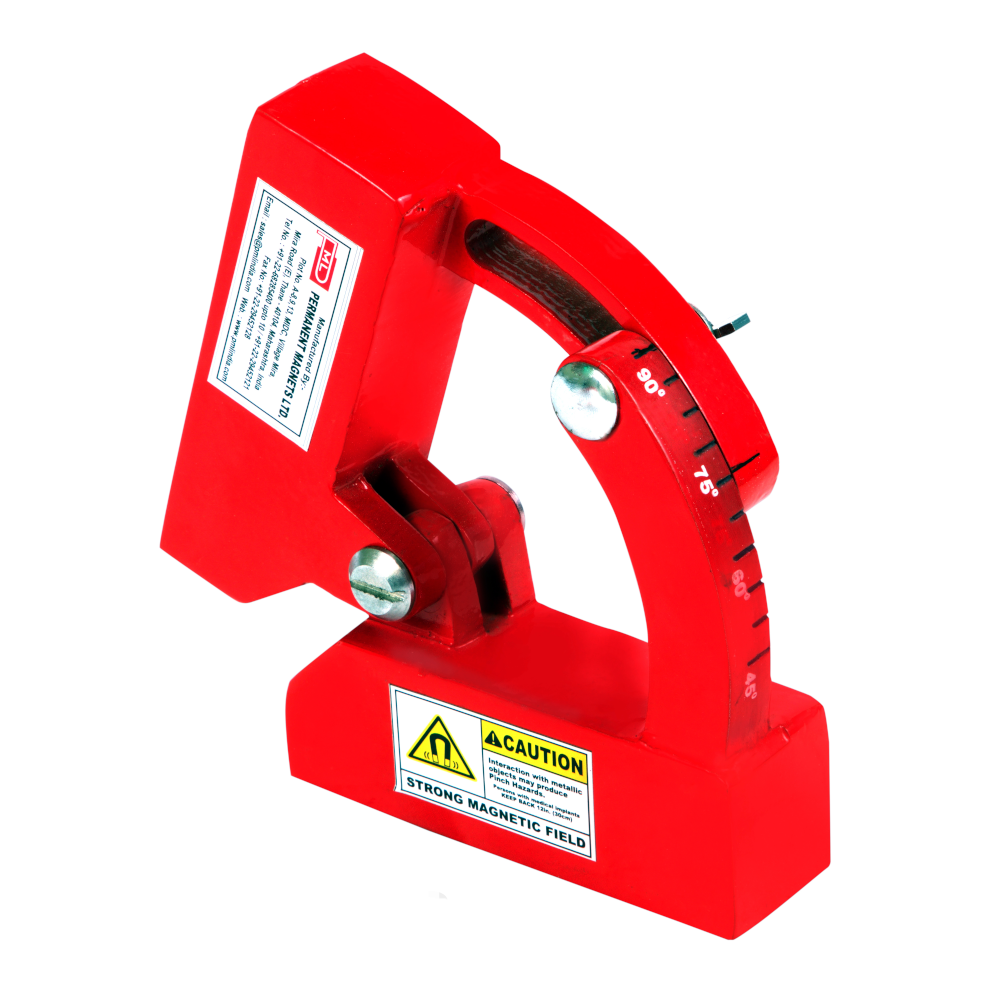

Welding angles of 30°, 45°, 60° and 90° are marked on the clamp, and wing nuts secure it at the desired angle — including angles in between.
- 50 kg Holding Force
Grips the workpiece firmly through tack-up and finish weld.
- Welding-Environment Tough
Operates in temperatures up to 250°C, at a unit weight of just 1.4 kg.
Application Videos
Schematic Drawing & Specifications
| Multi-Angle Protractor Magnetic Welding Clamp Model | |||||||
|---|---|---|---|---|---|---|---|
| Model | Clamp Length (mm) | Clamp Height (mm) | Clamp Thickness (mm) | Magnet Length (mm) | Magnet Width (mm) | Magnet Thickness (mm) | Magnet Gap(mm) |
| 608 | 142 | 142 | 35 | 90 | 6 | 3 | 10 |
Frequently Asked Questions
How is this different from a fixed-angle clamp?
Fixed clamps hold preset angles only. The protractor clamp adjusts continuously — set any marked angle (30°, 45°, 60°, 90°) or anything in between, then lock it with the wing nuts.
How much can it hold?
Up to 50 kg of holding force — enough to keep sheets and tubes firmly positioned while you weld.
Can it take welding heat?
It operates in temperatures up to 250°C. Keep it out of the direct arc and it will serve for years.
