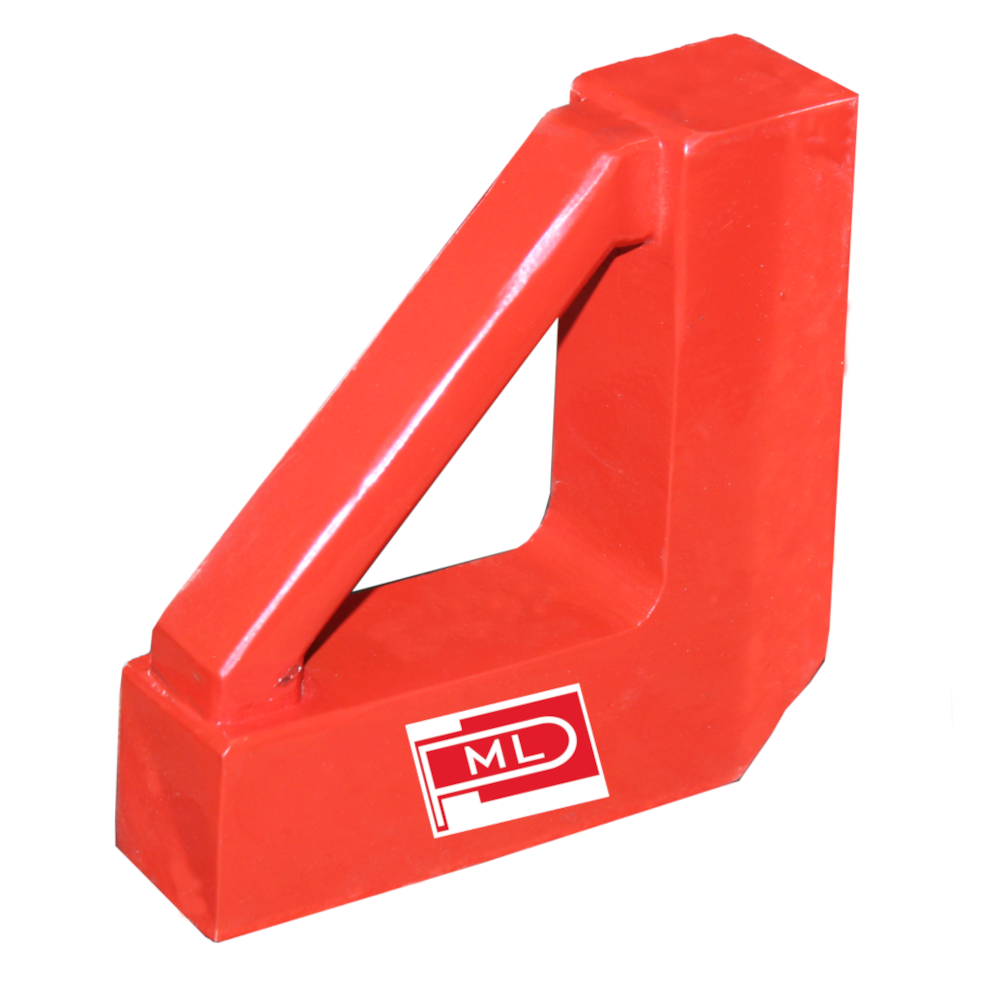

Fixed 90° Magnetic Welding Clamp

Fixed 90° Magnetic Welding Clamp

Rs.700.00
Rs.700.00
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

At a Glance

A magnetic welding clamp holds workpieces in position for welding without tack-welding or a third hand. PML's Fixed 90° Magnetic Welding Clamp locks pieces at a precise right angle only, for the fastest and simplest setup when every joint is a 90° angle.

Most fabrication is 90° work — and every degree of error multiplies down the assembly. The PML Fixed 90° Magnetic Welding Clamp is the fastest, easiest, most hassle-free way to weld items at a true right angle: set the pieces against the clamp, and the magnet holds them square while you weld hands-free.

  1. A True 90°, Every Time

    The fixed geometry guarantees the right angle — no measuring, no re-checking.

  2. Rods, Pipes and Sheets

    One clamp positions all the common workpiece shapes.

  3. 25 kg Holding Force

    Firm grip through tack-up and finish weld, at a unit weight of just 1 kg.

  4. Welding-Environment Tough

    Operates in temperatures up to 250°C.

Application Videos & Photos

Schematic Drawing & Specifications

Fixed 90-degree magnetic welding clamp schematic drawing, Cat No. 607
Fixed 90° Magnetic Welding Clamp Model
Model A (mm) B (mm) C (mm)
607 123 123 30

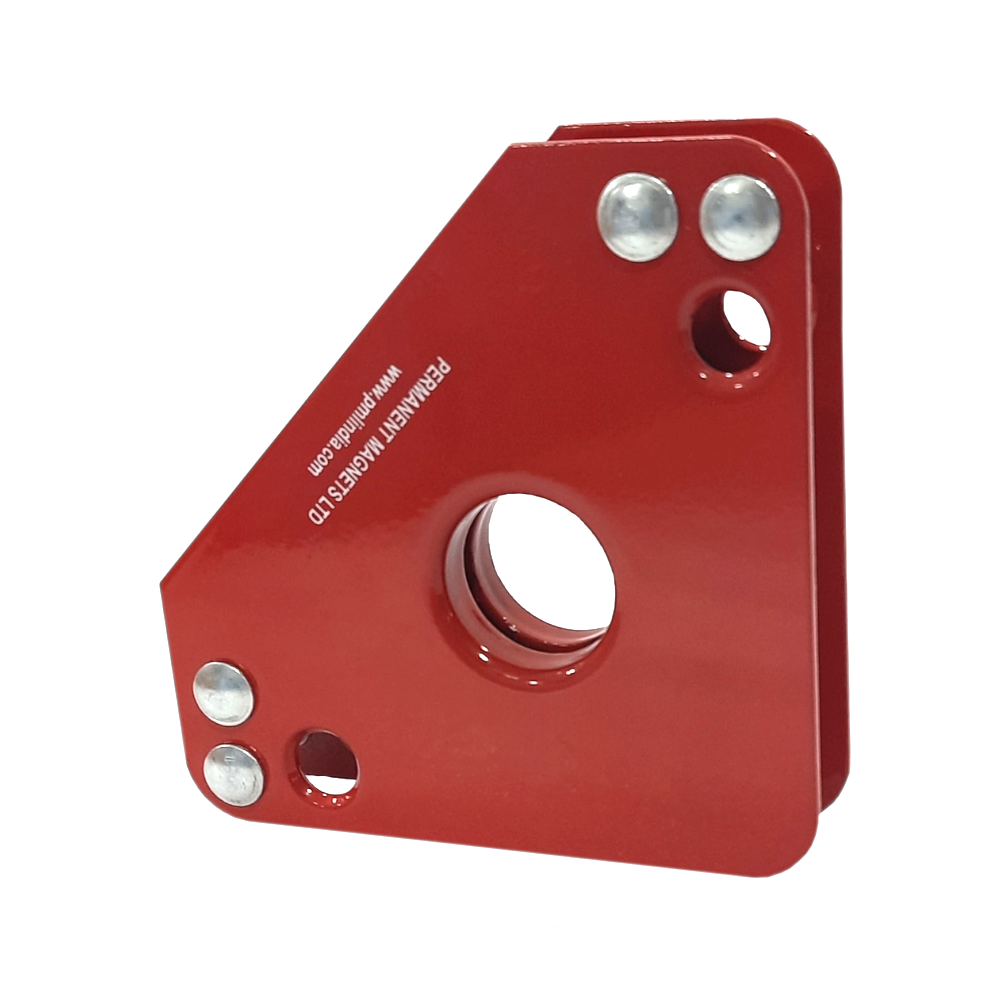

Mini Square Multi-Angle Magnetic Welding Clamp (45° & 90°) — CAT NO. 631

A compact square clamp covering 45° and 90° joints in tight spaces.

Schematic Drawing & Specifications

schematic drawing for Mini square multi angle welding clamp magnetic welding clamp
Mini Square Multi Angle Magnetic Welding Clamp (45° & 90° Angle) - Cat No - 631
Overall size (mm) Holding Force (kg)
on longest side		 Unit Weight (kg) Max. operating temp.
A B C
95 95 19 50 0.45 250°C

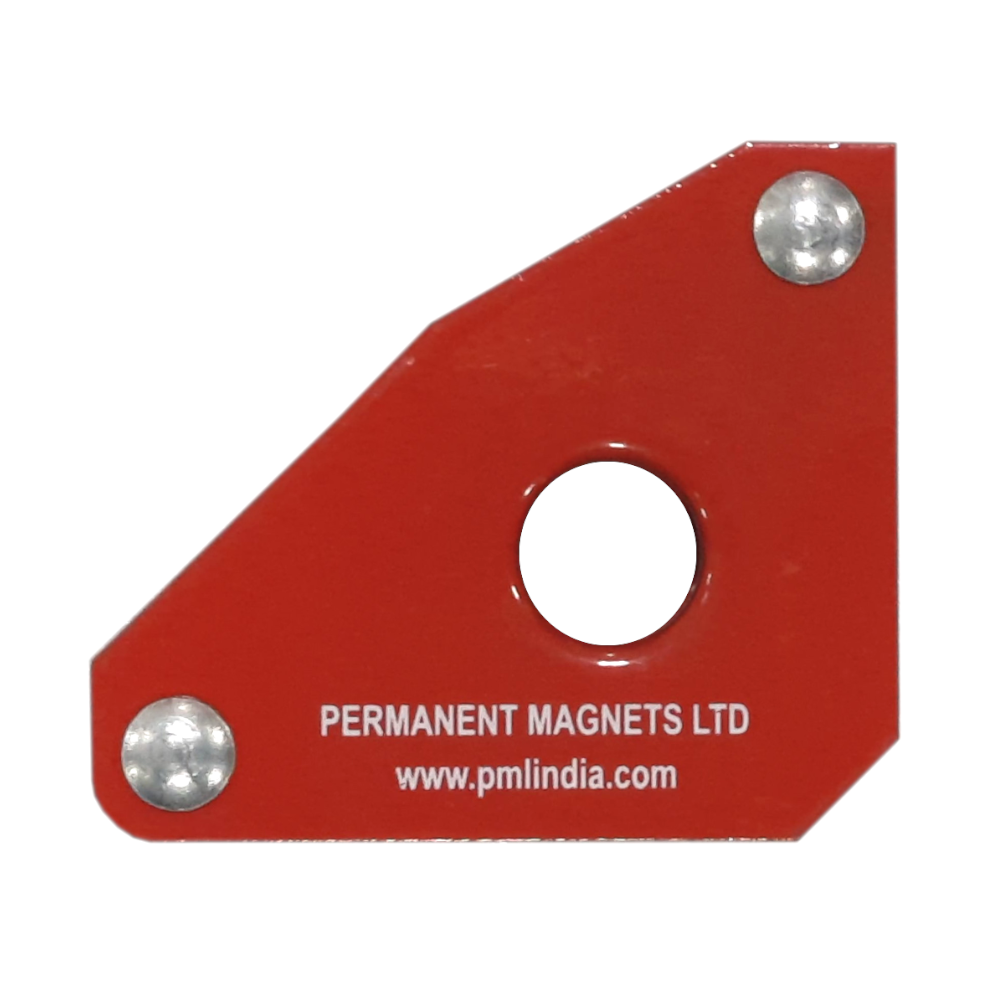

Mini Square Multi-Angle Magnetic Welding Clamp (30°, 45° & 90°) — CAT NO. 633

The 633 adds a 30° face to the mini square format.

Schematic Drawing & Specifications

schematic drawing for Mini square multi angle magnetic welding clamp
Mini Square Multi Angle Magnetic Welding Clamp (30°, 45° & 90° Angle) - Cat No - 633
Overall size (mm) Holding Force (kg)
on longest side		 Unit Weight (kg) Max. operating temp.
A B C
58.5 51 15 10 0.15 250°C

Frequently Asked Questions

How much weight will it hold at 90°?

The Fixed 90° clamp holds up to 25 kg — ample for the rods, pipes and sheets it is designed to position. The mini square models' holding forces are in their specification tables above.

Is it affected by welding heat?

It operates up to 250°C. Keep it out of the direct arc and clean spatter off the faces to preserve grip.

What is the difference between the 631 and 633?

Both are compact square clamps; the 631 covers 45° and 90°, while the 633 adds a 30° working face.

How much does the clamp weigh?

The Fixed 90° model (Cat No. 607) weighs about 1kg; the compact 631 and 633 mini models weigh 0.45kg and 0.15kg respectively.

Can it position round stock as well as flat sheet?

Yes — one clamp positions rods, pipes and sheets alike.
