Product Details

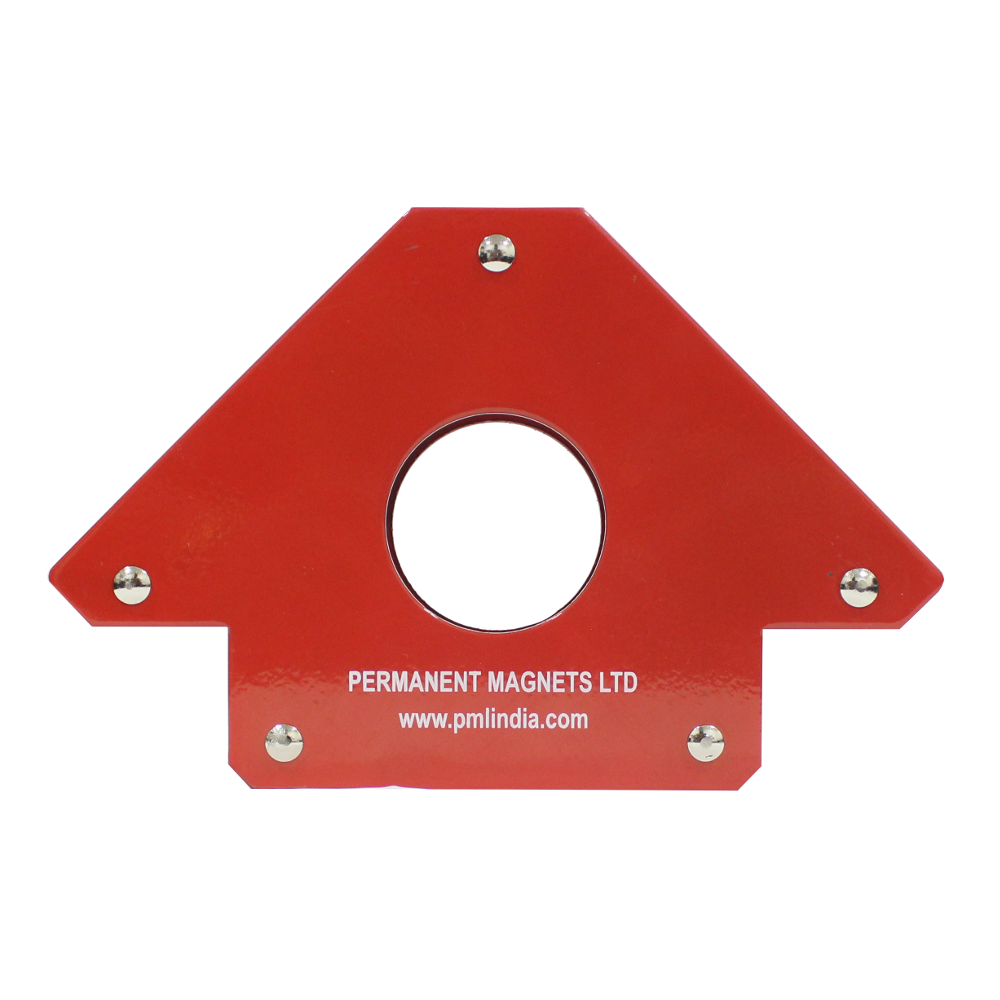

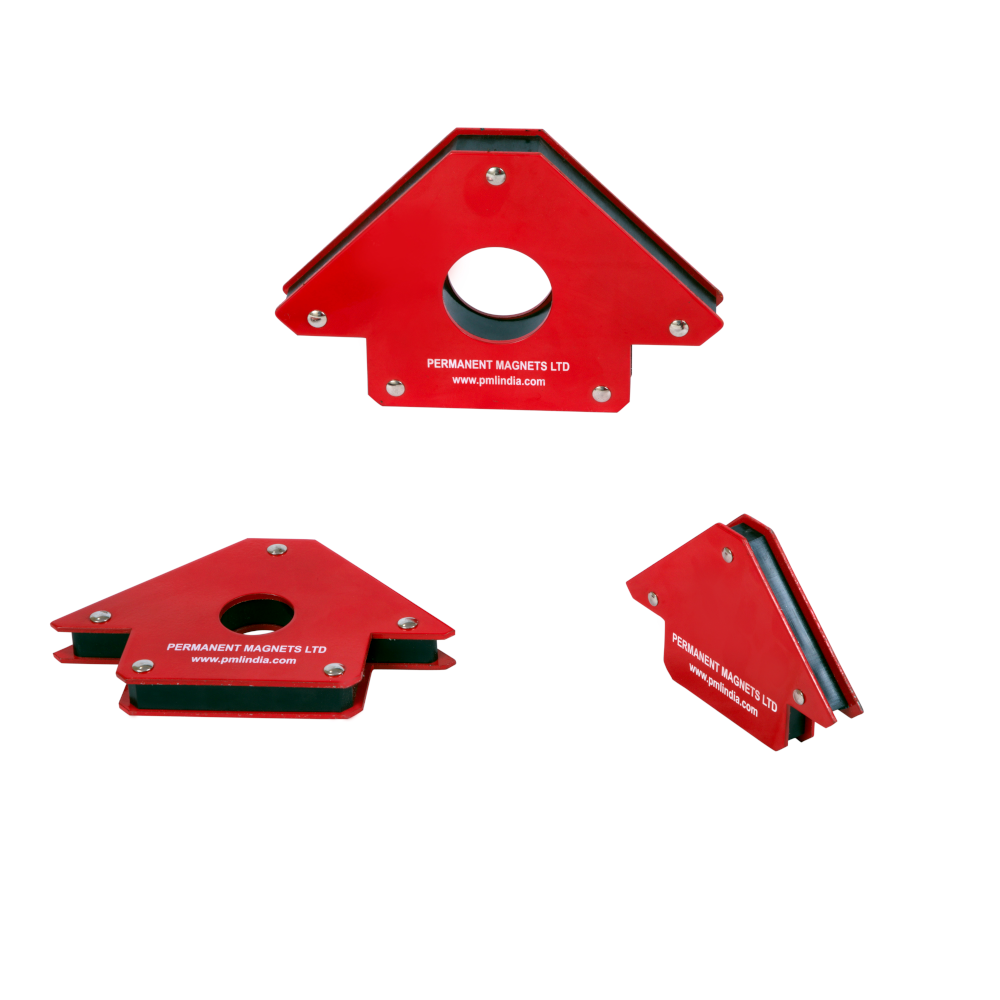

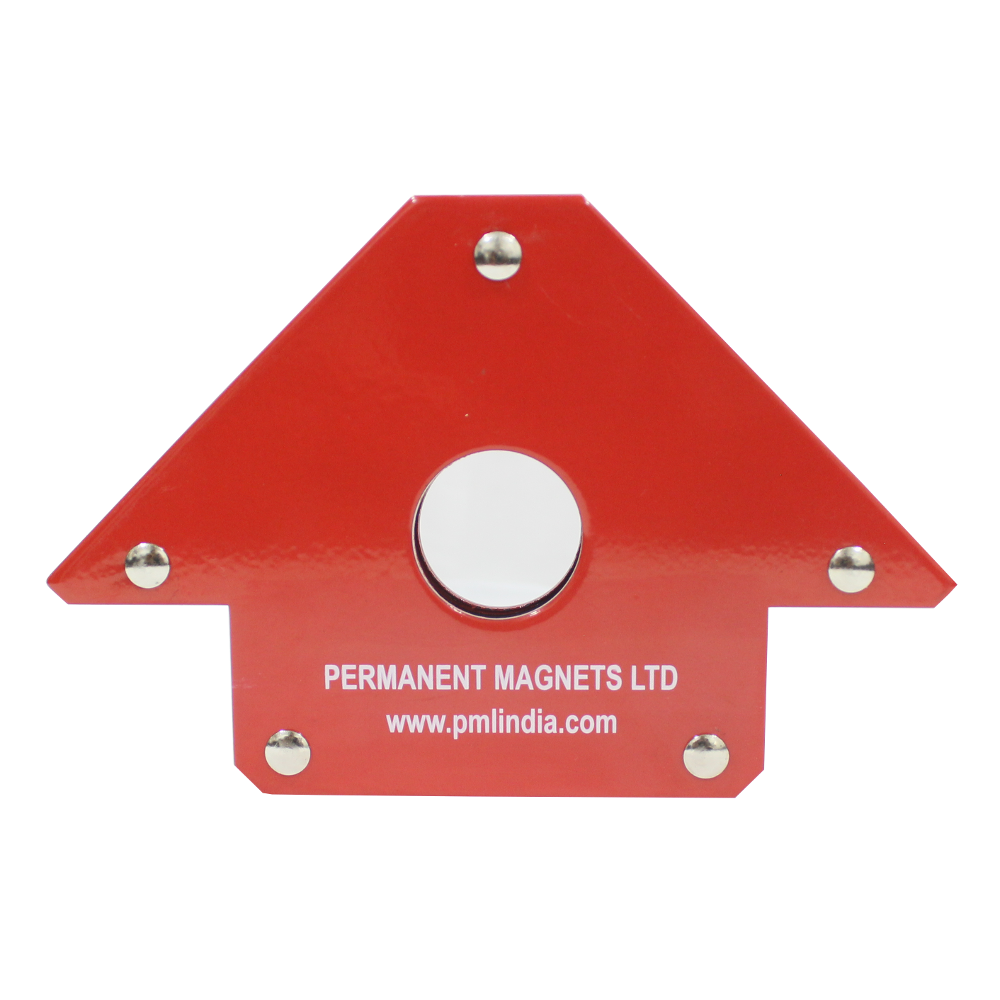

A welded joint is only as accurate as the setup that held it. PML Arrow Type Multi-Angle Magnetic Welding Clamps lock workpieces in position magnetically, so nothing shifts between tack and finish weld — and both your hands stay on the job.
- The Two Angles That Matter Most

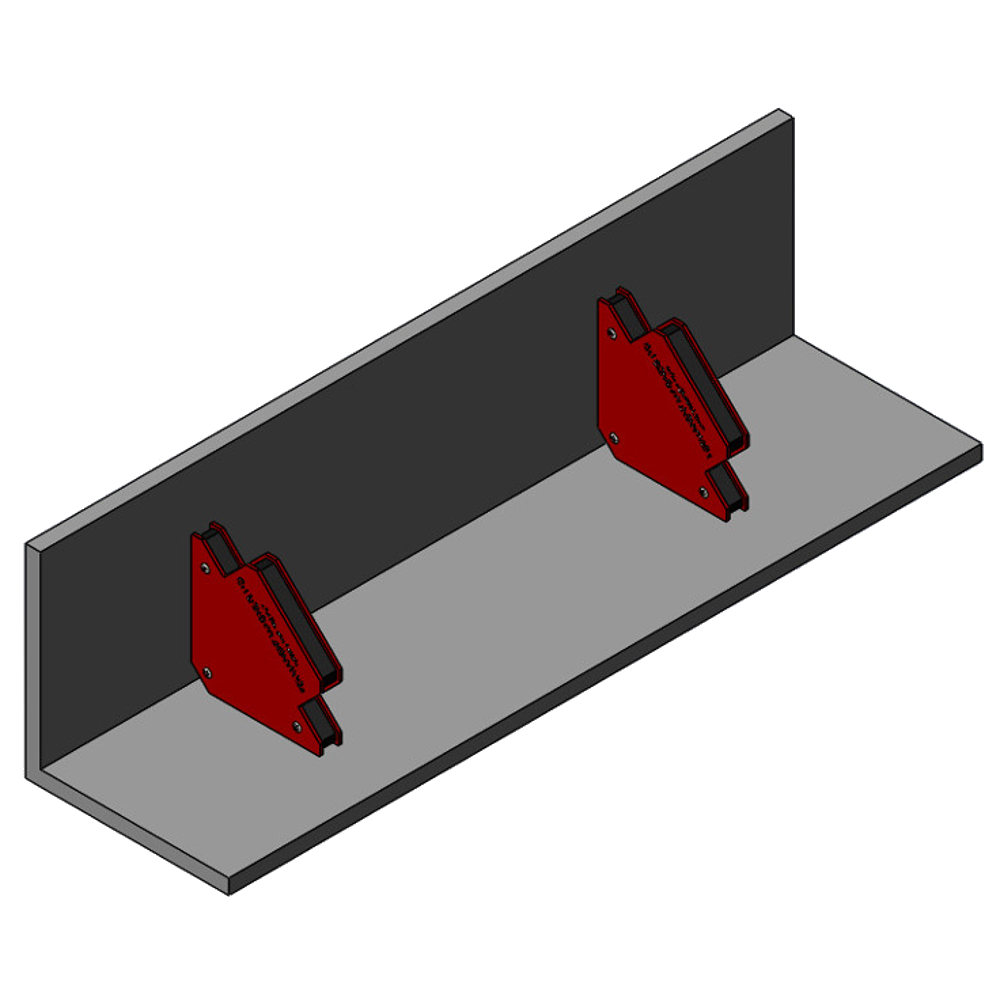

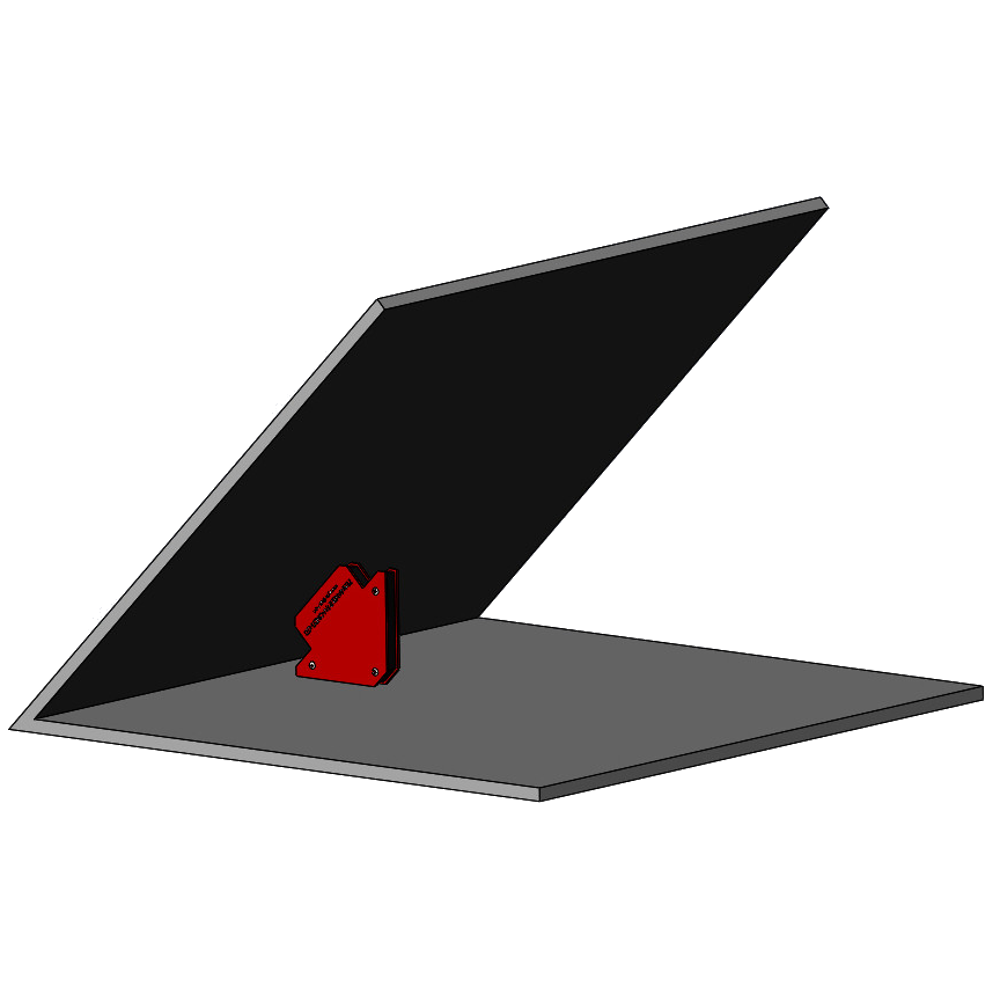

Purpose-shaped for 45° and 90° welding angles — the joints that make up most fabrication work.
- Flat and Round Work
The arrow geometry seats both flat and round work-pieces securely.
- Instant, Hands-Free Grip
Magnetic hold means no mechanical clamping, no marks, and one-person setup.

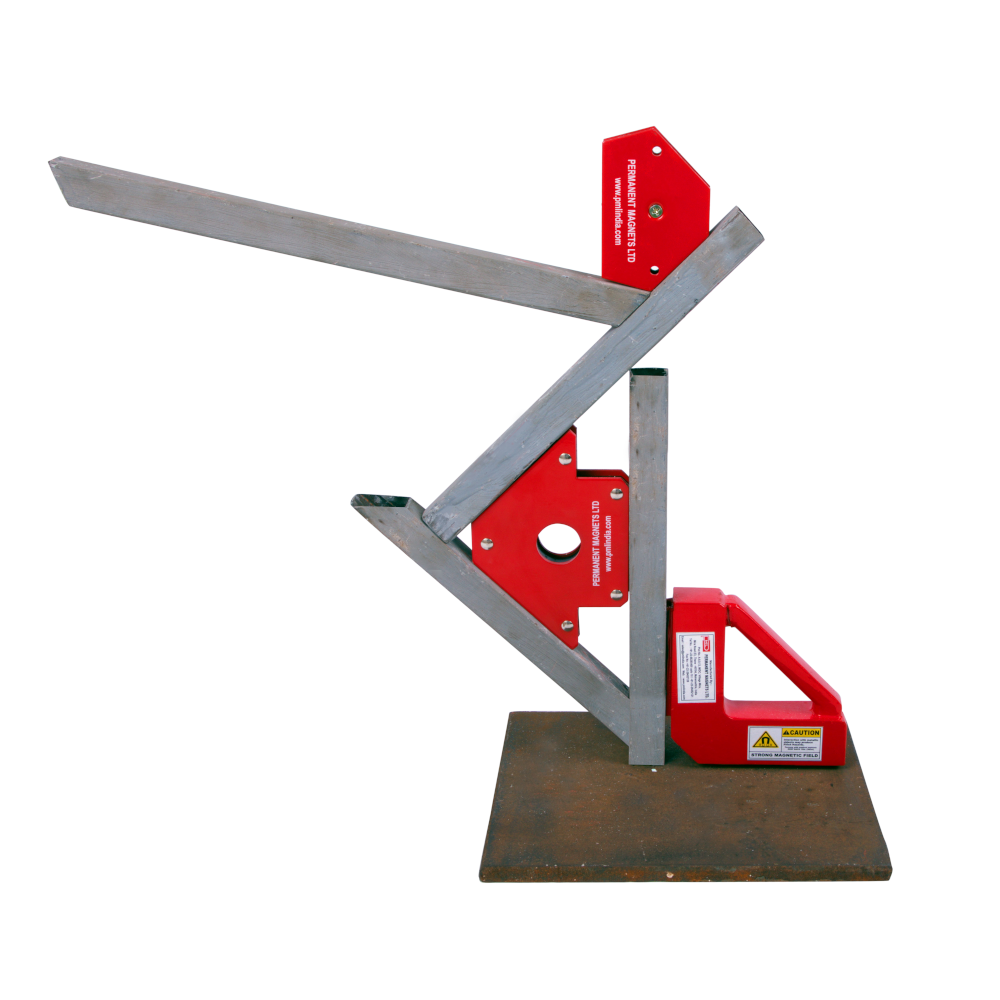

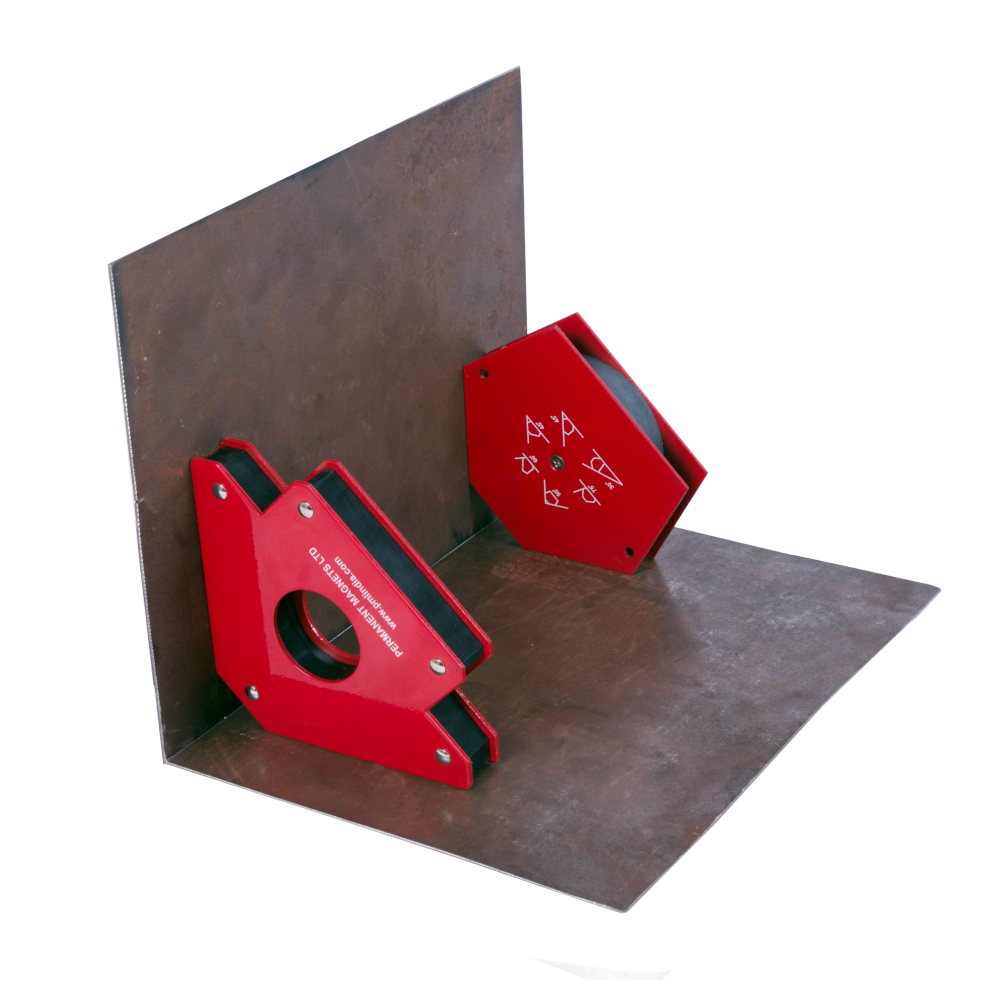

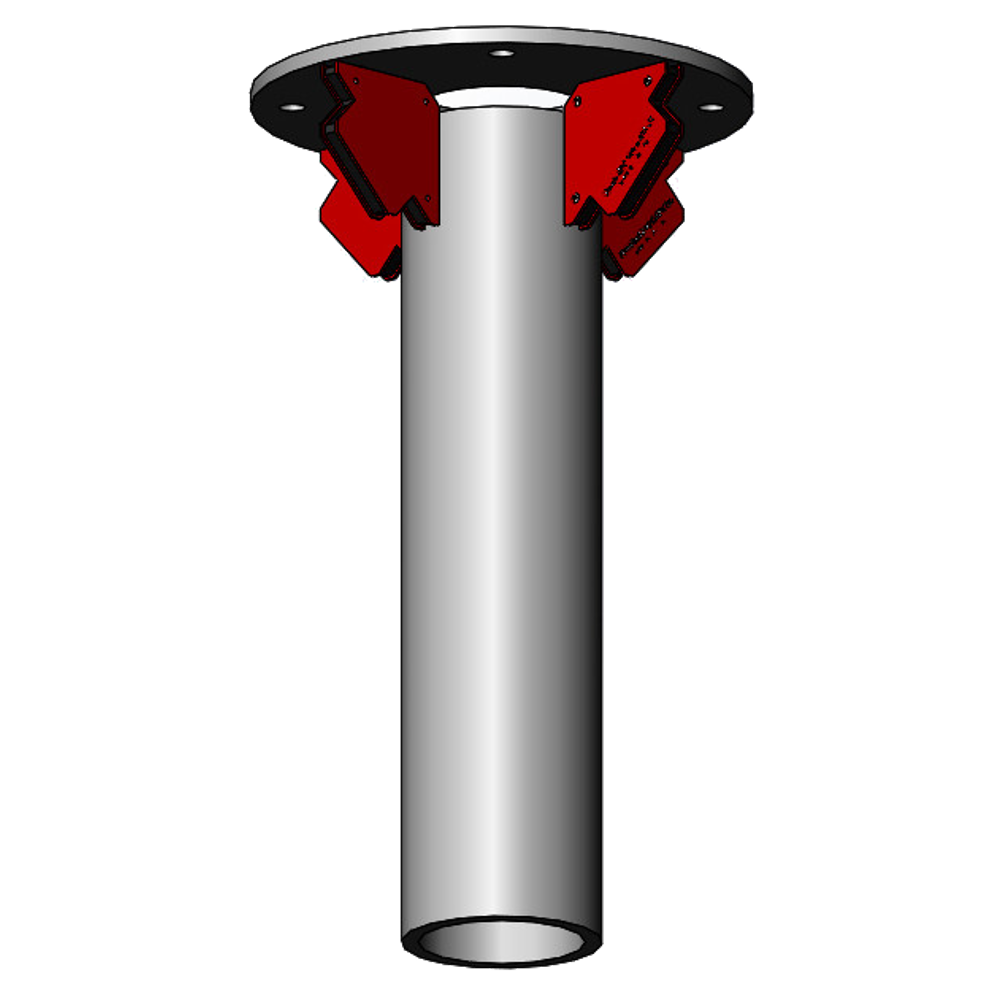

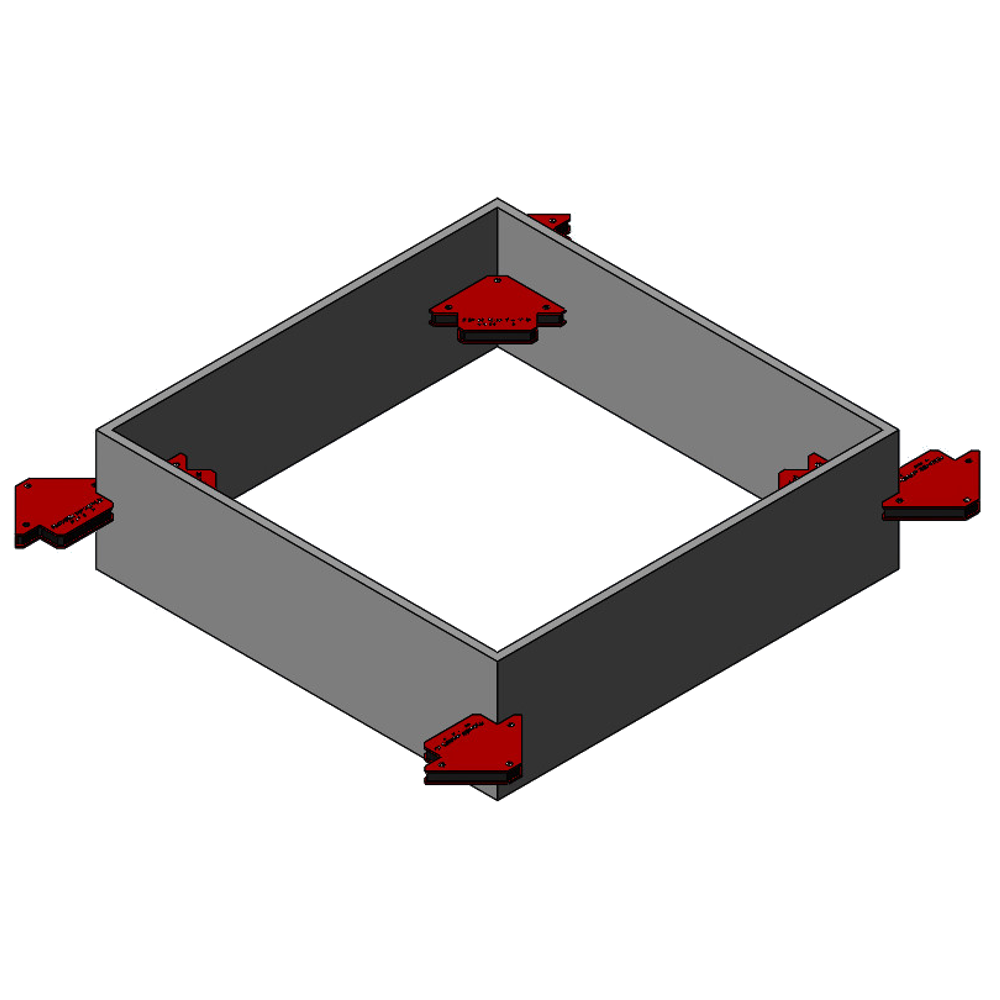

Application Videos & Photos
Schematic Drawing & Specifications
| Arrow Type Multi-Angle Magnetic Welding Clamps Model | |||||
|---|---|---|---|---|---|
| Model | Length (mm) | Width (mm) | Height (mm) | Holding Force (kg) | Unit Weight (gms) |
| 622 | 121 | 83 |
14.5 |
10 | 330 |
| 623 | 152 | 102 |
17.3 |
20 | 615 |
| 629 | 188 | 122 | 25 | 30 | 1100 |
Frequently Asked Questions
Can it hold pipe as well as sheet?

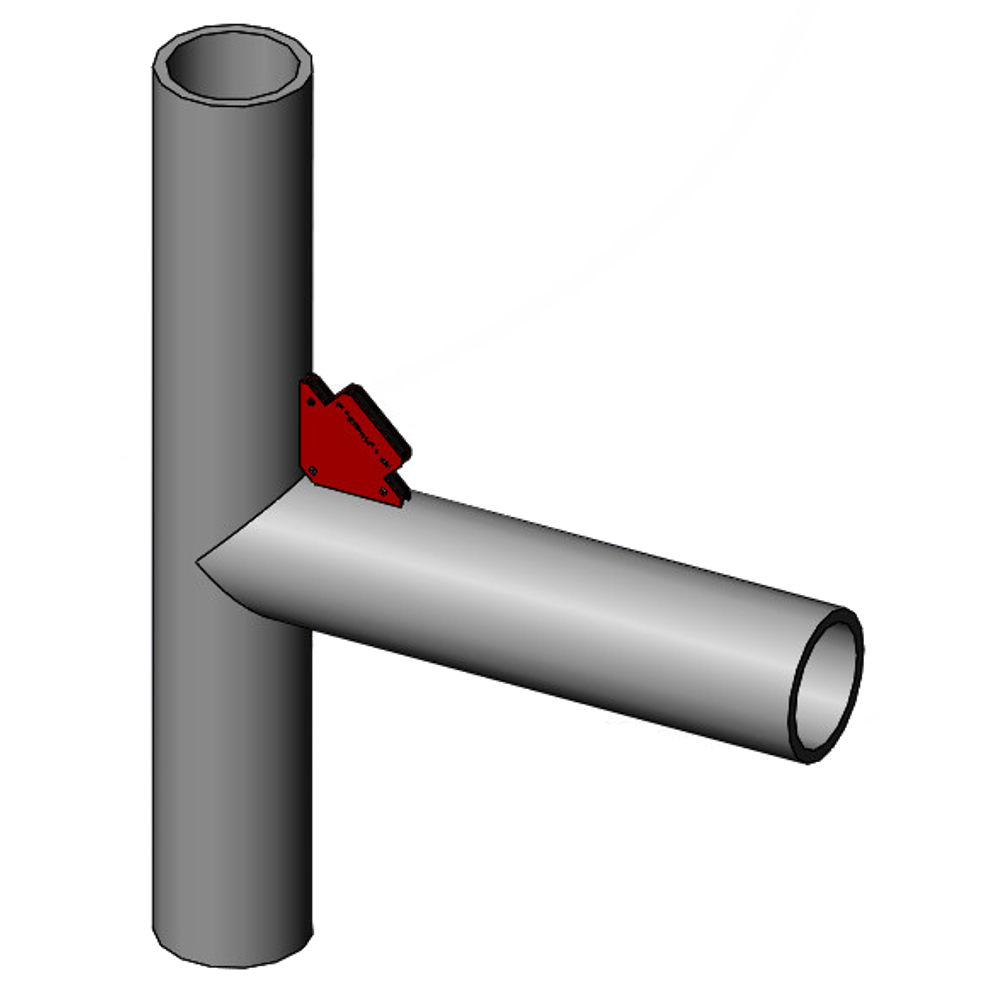

Yes — the arrow shape is designed to seat both flat and round work-pieces at 45° or 90°.
How strong is the hold?
Holding force varies by model — see the specification table above and select the size that comfortably exceeds your workpiece weight.
Do I need one clamp or two?

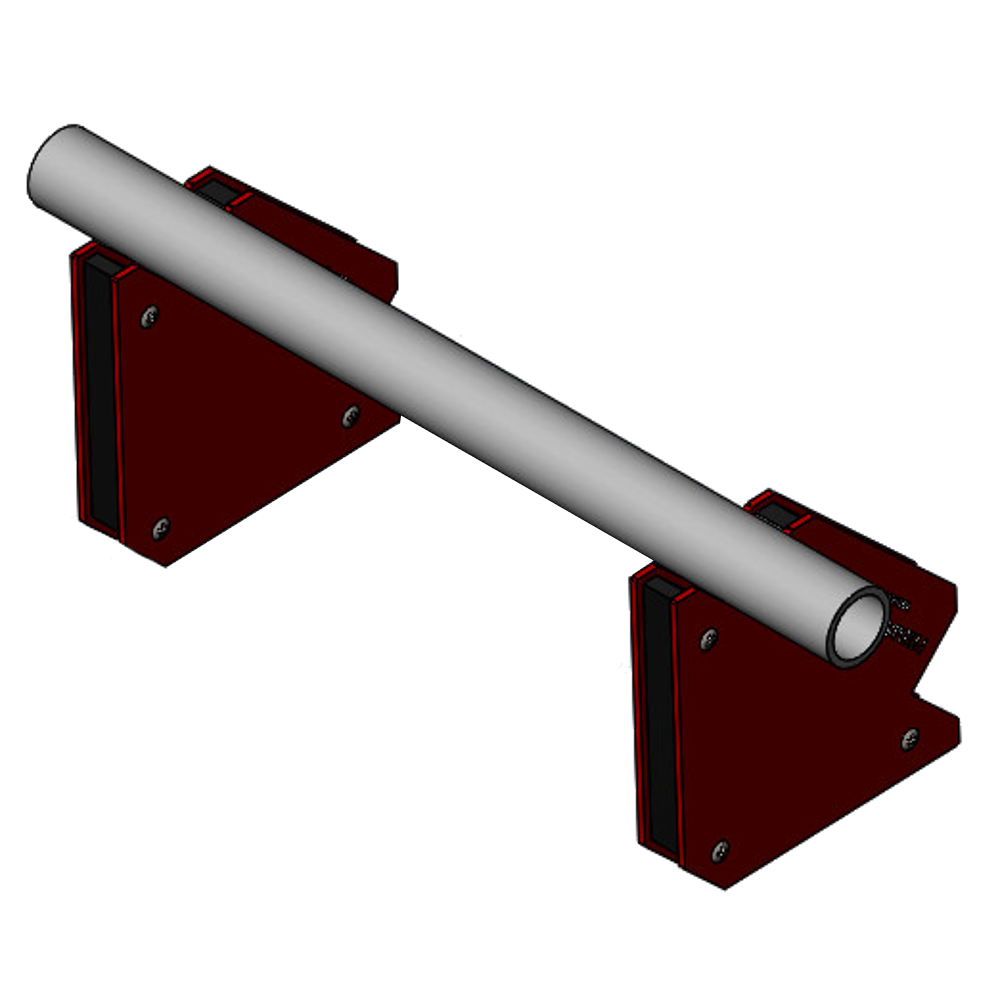

For most sheet and tube joints one clamp per joint is enough; long or heavy pieces position best with a clamp at each end.
