Self-Cleaning vs Normal Magnetic Grill: Which One Fits Your Line?

A magnetic grill's job is simple: drop a bank of magnetic rods into your product flow — grain, sugar, flour, plastic pellets, powders — and trap ferrous contamination in a single pass before it reaches the next stage of your line. Every version of PML's grill does that job the same way. What actually separates the models is what happens once the rods are full: how they get cleaned, how often, and how much of your process has to pause to do it.

How the Normal (Manual) Magnetic Grill Works

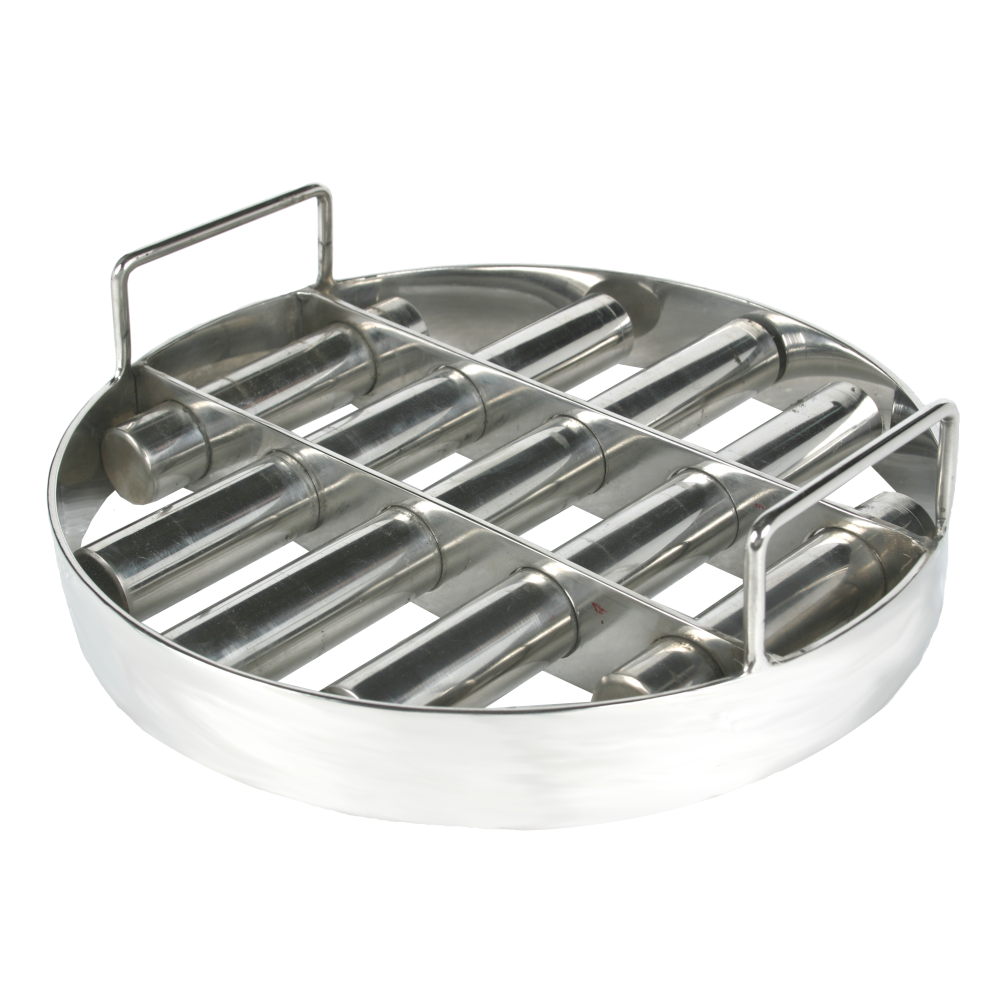

The standard grill is a stainless steel frame (round, square or rectangular) fitted with magnetic rods and dropped straight into your product flow. It's built in four intensity grades from 2,500 to 12,000 Gauss, so you can match field strength to your contamination size, from large nuts and bolts down to fine 1-micron particles.

Cleaning is manual: the rods are pulled from the housing and wiped down by hand. PML recommends cleaning before every batch, since accumulated iron reduces attraction over time — some lines instead run cleaning on a fixed schedule matched to their contamination load. Either way, someone has to physically remove the rods, and the line typically pauses while it happens. This works well as long as contamination stays within roughly 1–1.5% of product weight by volume; above that, cleaning frequency starts to become the bottleneck.

How the Self-Cleaning Magnetic Grill Works

The Self-Cleaning Grill uses the same stainless-steel, high-intensity rare-earth (NdFeB) magnetic rod platform, rated to 11,000 & 12,000 Gauss, but automates the cleaning step entirely. Pneumatic cylinders, an FRL unit and a timer with a manual operating button drive the whole cycle: actuating the solenoid retracts the magnetic tubes back through a stripper assembly that deposits the collected tramp iron outside the product flow, then returns the tubes to the run position — no drawer to remove, no rods to pull by hand. The cycle can be triggered on demand at the push of a button or run automatically on a schedule, and it happens in place, without disassembling the unit or stopping the line to clean it.

It's worth knowing there's also a middle option between these two: PML's Easy Clean Grill, which cuts cleaning down to a manual slide-and-drop drawer action — faster than removing individual rods, but still a manual step, unlike the fully automated cylinder-and-timer cycle on the Self-Cleaning model.

Head-to-Head Comparison

When to Choose the Normal Grill

• Your contamination load is light enough that batch-by-batch manual cleaning isn't a real bottleneck
• You need a lower-intensity, lower-cost grade for coarse contamination (nuts, bolts, larger fragments) rather than fine-particle capture
• You don't have a compressed air supply readily available at the installation point
• You're working with a tighter budget and manual cleaning labor is manageable within your process

When to Choose the Self-Cleaning Grill

• Contamination is frequent enough that manual drawer or rod cleaning has become a real production bottleneck
• You're running a continuous or high-throughput line where any pause for cleaning is costly
• You already have compressed air infrastructure in place
• You want cleaning on a reliable automatic schedule rather than depending on an operator remembering to do it

Both share the same fundamental job — catching ferrous contamination before it reaches the rest of your line — so the decision rarely comes down to capture performance. It comes down to how much cleaning frequency your process can absorb manually before it starts costing you more in downtime than the automation would.
